Jual Loadcell CAS Type BS - Murah
Perhatian!
Spesifikasi Jual Loadcell CAS Type BS - Murah
Spesifikasi Loadcell CAS Type BS - Murah

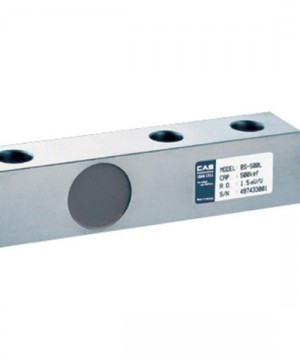

CAS BS
|
SPECIFICATIONS : CAS BS LOAD CELL |
||
| Max. Capacity | 250, 500kfg | 1, 2, 3, 5, 10tf |
| Rated Output | 1.5 ± 0.0037mV/V | 2.0 ± 0.005mV/V |
| Zero Balance | 0 ± 0.015mV/V | 0 ± 0.02mV/V |
| Combined Error | 0.03%RO | |
| Repeatability | 0.01%RO | |
| Creep for 30 min | 0.03%RO | |
| Temperature Effect on : Zero Value Output Value |
0.028%RO/10°C 0.015%RO/10°C |
|
| Excitation : Recommended Maximum |
10V 15V |
|
| Resistance : Input Output Insulation |
400 ± 20Ω 350 ± 5Ω ≥ 2.000MΩ |
|
| Compensated Temperature Range | – 10 ~ 40°C | |
| Operating Temperature Range | – 20 ~ 80°C | |
|
FEATURES : CAS BS LOAD CELL |
|
| Low price high accuracy | Protection class IP65 |
|
TYPE : CAS BS LOAD CELL |
||||||||||
| Model | Capacity | A | B | C | D | E | F | G | H | I |
| BS-250L | 250kgf | 145 | 20 | 40 | 72 | 34 | 30 | 16.0 | 14.5 | 80 |
| BS-500L | 500kgf | 145 | 20 | 40 | 72 | 34 | 30 | 16.0 | 14.5 | 80 |
| BS-1 | 1tf | 145 | 20 | 40 | 72 | 34 | 30 | 16.0 | 14.5 | 80 |
| BS-2 | 2tf | 145 | 20 | 40 | 72 | 34 | 30 | 16.0 | 14.5 | 80 |
| BS-5 | 5tf | 205 | 25 | 55 | 105 | 48 | 38 | 20.5 | 20.5 | 105 |
| BS-10 | 10tf | 273 | 36 | 90 | 112.5 | 63 | 60 | 27.0 | 27 | 145 |
