Spesifikasi Jual LOAD CELL Merk PT type HPC - Murah
Spesifikasi LOAD CELL Merk PT type HPC - Murah
LOADCELL Compression
MERK : PT
TYPE : HPC
KAPASITAS : 30T & 45T

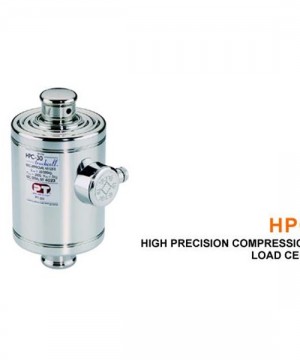

HPC Compression
(30t & 45t Stainless IP68) Weighbridge.
The HPC (high Precision Compression) is a state of the art measurement device. Its highly sophisticated and super sensitive electronics are housed in a rugged fully stainless steel enclosure. Fitted with power surge arrestors, anti-rotation mechanism and inert gas filled for component longevity, the HPC provides for a true IP68 enclosure rating with greater than 300 hours protection at 1.5m immersion.
Purpose designed to meet the needs of the weighbridge and truck scale manufacturer, the cell is supplied in two optimum weighbridge cell capacities of 30t and 45t.
To ensure the exceptional performance of the HPC is optimised, PT offer specially designed mounting accessories.
The HPC has formal approval in many countries for both capacities. It has a three-year warranty and is supplied individually packed with a detailed accuracy certificate traceable by serial number.
SPECIFICATIONS
Nominal Capacity
Signal output at capacity
Linearity Error
Non-Repeatability
Combined Error
Hysteresis
Creep/Zero Return(30 mins)
Zero Balance
Temperature Effect On Span/10ºC
Temperature Effect on Zero/10ºC
Compensated Temperature Range
Operating Temperature Range
Service Load
Safe Load
Excitation +ve
Signal +ve
Sense +ve 30t and 45t
2mV/V ± 0.1%
< 0.020% FSO
< 0.010% FSO
< 0.023% FSO
< 0.017% FSO
< 0.023% / 0.017% FSO
< 1.000% Capacity
< 0.010% FSO
< 0.015% FSO
-10 ~ 50°C
-30 ~ 65°C
100% of Rated Capacity
150% of Rated Capacity
RED
GREEN
BROWN Ultimate Load
Input Resistance
Output Resistance
Insulation Resistance (bdg to grd)
Excitation Voltage (Rec)
Excitation Voltage (Max)
Tilt (Max. Transverse Displ
Power Surge Arrestors
Storage Temperature Range
Cable Type
.
Cable Length
Net Weight
Material
Excitation -ve
Signal -ve
Sense -ve 300% of Rated Capacity
750Ω ± 10Ω
704Ω Matched ± 0.2Ω
> 5000 MΩ at 100V DC
5 ~ 18V AC/DC
20V AC/DC
15mm
Fitted as standard
-50 ~ 65°C
7.5mm, Braid Screen, PUR sheath
6 Core x 0.24mm² (24 AWG)
12 Metres
3.75kg
Stainless Steel
BLACK
WHITE
BLUE
