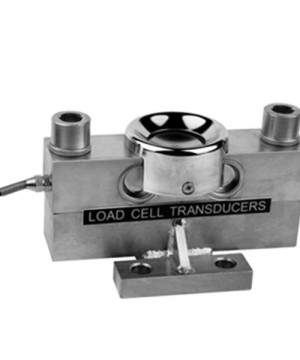

LOAD CELL KELI QS-30 TON
Gambar Produk
LOAD CELL KELI QS-30 TON
Pengiriman
3 Hari Setelah Pembayaran
Lokasi
Jawa Tengah - Semarang
Harga
Kontak Kami
Dilihat Sebanyak
65 kali
Update Terakhir
20-06-2019
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi LOAD CELL KELI QS-30 TON
Detail LOAD CELL KELI QS-30 TON
◆KELI QS 30 TON load cell are available in the capacities 10t to 50t.
◆Alloy steel construction, nickel plated , hermetically welded,
oil-proof,waterproof and anti-corrosive gas and medium making
it suitable for all kinds of environments.
◆Dual shear beam, Suitable for electronic truck scales,railway
scales and other electronic weighing devices.
◆It is safety and anti-explosion product that can be used in
atrocious weather and hazardous areas.
Features
◆Capacity:10t to 50t.
◆High accuracy.
◆Alloy steel construction.
◆Easy installation, reliable
performance.
◆With OIML approval.
Specifications
Capacity
t
10/20/25/30/40SE/40/50
Accuracy
C1
C2
C3
A5M
B10M
Approvals
OIML R60 C3
Maximum number of
verification intervals
n max
1000
2000
3000
5000
10000
Minimum load cell
verification interval
v min
Emax/3000
Emax/5000
Emax/7500
Emax
/15000
Emax
/10000
Combined error
(%FS)
≤±0.050
≤±0.030
≤±0.020
≤±0.026
≤±0.050
Creep
(%FS/30min)
≤±0.038
≤±0.024
≤±0.016
≤±0.017
≤±0.040
Temperature effect
on sensitivity
(%FS/10℃)
≤±0.028
≤±0.017
≤±0.011
≤±0.013
≤±0.040
Temperature effect
on zero
(%FS/10℃)
≤±0.047
≤±0.023
≤±0.015
≤±0.014
≤±0.020
Output sensitivity
(mv/v)
2.0±0.002
2.3±0.002
2.4±0.002
1.9±0.002
1.8±0.002
Input resistance
(Ω)
700 ±7
775 ±5 750 ±7
Output resistance
(Ω)
700 ±7
Insulation resistance
(MΩ)
≥ 5000(50VDC)
Zero balance
(%FS)
1.5
Temperature, compensated
(℃)
-10～+40
Temperature,allowed
(℃)
-35～+65
Excitation, Recommended
(V)
5～12(DC)
Excitation,Max
(V)
18(DC)
Safe overload
(%FS)
150
Ultimate overload
(%FS)
300
