EARTHING CONTROL SYSTEM GUB
Gambar Produk
EARTHING CONTROL SYSTEM GUB
Update Terakhir
18-06-2019
Dilihat Sebanyak
3 kali
Lokasi
Jawa Timur - Sidoarjo
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi EARTHING CONTROL SYSTEM GUB
Detail EARTHING ConTROL SYSTEM GUB

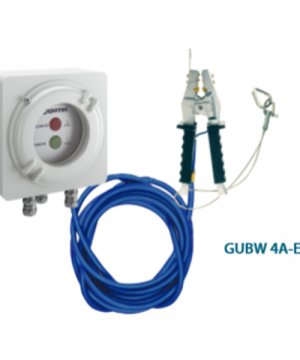

EARTHING ConTROL SYSTEM allows safe loading and off-loading of mobile tanks (trucks, wagons , trolleys and big bags) in which flammable products are stored . The high speed process could generate electrostatic charges with possible risks of sparks and explosions. To avoid the accumulation of static electricity, the system constantly verifies the grounding connection and allows the loading process only if safety parameters are fully respected.
The Earthing Control System is housed in a GUB/GUBA or an EJB enclosure, available in copper-free aluminium alloy finished with epoxy-coating RAL 7001 or, for highly-corrosive environment, in stainless steel.
GUB/GUBA housing is suitable for the IIC Group Protection while EJB housing is suitable for II+H2 Group protection (any gas with the sole exclusion of Acetylene). The connection to the clamp is performed through an intrinsically safe circuit.
The electronic control unit is available in different versions, covering the different applications:
· RESISTIVE : a low resistance R is detected between the two clamp jaws;
· RESISTIVE & CAPACITIVE : in addition to low resistance,the truck’s capacitance is also monitored.
Explosion Proof
PT.ALVITAMA SENTOSA
PT. Alvitama Sentosa Perusahaan yang mengkhususkan diri pada Peralatan Proof Explosion sebagai berikut :
Produk Supermec : Box Panel Explosion proof, Junction Box Explosion proof, Lighting (flourescent TL / LED lampu sorot Explosion proof).
Produk Euromotori : Elektromotor Explosion proof (pompa / dinamo).
Produk Auer Signaling Equipment Explosion proof (telepon, loudspeaker, LED beacon, Sirene motor, Sounders).
Produk PCE Plug dan soket industrial : CEE Plug, CEE Socket, Taurus, Schuko, Nautilus IP 68, Switch Interlocked Socket. Alvilite Lighting.
Penerangan Lampu Industrial untuk Perkantoran, Perumahan, Pabrik, dan Gudang.
Lampu Fluorescent TL / LED dengan material penutup Fiber, Alumunium, dan Stainlesssteel.
Produk Alvi Box Industrial Box Panel yang diperuntukan aplikasi pada perkantoran, Pergudangan, dan Area Pabrik (Outdoor / Indoor) dengan material Box, Stainless Steel, dan Carbon Steel.
Kami akan memberikan ketersediaan produk explosion proof dan industrial dengan mutu berkualitas dengan melihat kebutuhan pelanggan, sehingga konsumen akan mendapatkan produk yang tepat guna dalam pengaplikasian yang berkualitas tinggi.
