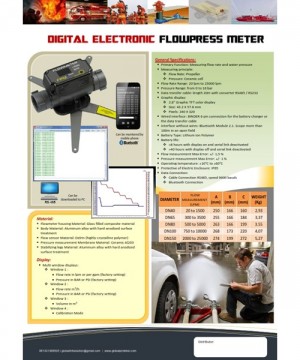

DIGITAL ELEKTRONIK FLOWPRESS METER
Gambar Produk
DIGITAL ELEKTRONIK FLOWPRESS METER
Pengiriman
3 Hari Setelah Pembayaran
Lokasi
Jawa Timur - Jombang
Harga
Kontak Kami
Dilihat Sebanyak
103 kali
Update Terakhir
24-05-2019
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi DIGITAL ELEKTRONIK FLOWPRESS METER
Detail DIGITAL ELEKTRonIK FLOWPRESS METER
DIGITAL MULTIMETER ELEKTRonIK FLOWPRESS METER
General Specifications:
Primary Function: Measuring flow rate and water pressure
Measuring principle:
Flow Rate: Propeller
Pressure: Ceramic cell
Flow Rate Range: 20 lpm to 25000 lpm
Pressure Range: from 0 to 16 bar
Data transfer cable: length 20m with converter RS485 / RS232
Graphic display:
2.8” Graphic TFT color display
Size: 43.2 X 57.6 mm
Pixels: 240 X 320
Wired interface : BINDER 6 pin connection for the battery charger or
the data transfer cable
Interface without wires: Bluetooth Module 2.1. Scope more than
100m in an open field
Battery Type: Lithium Ion Polymer
Battery life:
>8 hours with display on and serial link deactivated
>40 hours with display off and serial link deactivated
Flow measurement Max Error: +/- 1,5 %
Pressure measurement Max Error: +/- 1 %
Operating temperature: +10°C to +60°C
Protective of Electric Enclosure: IP65
Data Connection:
Cable Connection RS485, speed 9600 bauds
Bluetooth Connection
