Mesin Hydraulic SHD 250/90 mm

Brand
Wuxi Shengda
Minimum Pembelian
1 Unit
Pengiriman
2 Hari Setelah Pembayaran
Lokasi
Harga
Rp. 43.000.000
Dilihat Sebanyak
50 kali
Update Terakhir
23-01-2019
Bagikan
+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

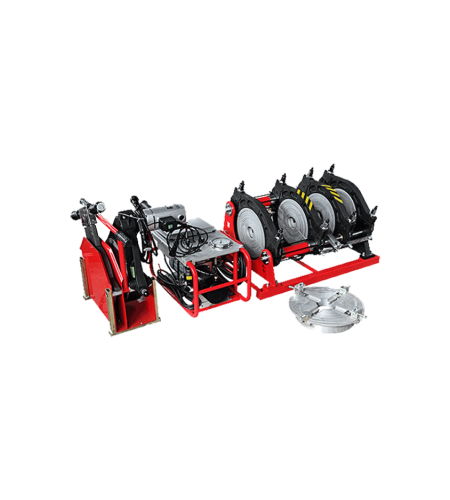

Spesifikasi Mesin Hydraulic SHD 250/90 mm

 Hidraulic Butt Fusion Welding Machine SHD 250/90

Application and Features:

  • Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF in a ditch in worksite or workshop.
  • Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts.
  • Removable PTFE coated heating plate with high accurate temperature control system;
  • Electrical planing tool.
  • Be made of lightweight and high strength material; simple structure, small and delicate, user friendly.
  • Low starting pressure ensures reliable welding quality of small pipes.
  • Changeable welding position enables to weld various fittings more easily.
  • High accurate and shockproof pressure meter indicates clearer readings.
  • Separate two-channel timer records time in soaking and cooling phases.

Optional parts:

  • Stub end device for short flange.
  • Data logger.

Technical Parameters:



Model SHD 250/90
Pipe size (mm) 90,110,125,140,160,180,200,225,250
Heating plate max. temp. 270℃
Temp. deviation in surface (170~250℃) ≤±7℃
Pressure adjustable Ranges 0-6.3Mpa
Working voltage 220V、50Hz
Heating plate power 3KW
Planing tool power 1.1KW
Hydraulic unit power 0.75KW
Total power 4.85KW
Weight 143Kg
Packing Cases 3PlywoodCases
Volume 0.70CBM



Tampilkan Lebih Banyak

Daffalindo Multi Sarana

PT. Daffalindo Multi Sarana merupakan distributor resmi Mesin Las Pipa HDPE di Indonesia.
Mesin las pipa hdpe adalah alat untuk penyambungan pipa jenis PE ( Polyethylene/Polietilena, pipa PE yang dimaksud atau lebih dikenal dengan sebutan pipa HDPE ( High Density Polyethylene ) warna hitam bergaris biru memiliki daya tahan yang cukup lama dibandingkan dengan pipa plastik jenis lainnya.

PIPA HDPE biasanya digunakan untuk pipa jaringan air bersih bertekanan, air kotor, pipa saluran kimia, pipa saluran gas alam, saluran pipa minyak, saluran pipa uap, saluran pipa kabel optik dan untuk keperluan lainya. Pipa PE yang banyak digunakan adalah PE100 dan PE80.

Disini kami hadir untuk memenuhi permintaan kebutuhan konsumen sebagai penyalur/distributor mesin las pipa jenis PE tersebut yang lagi ngetrend saat ini di indonesia mengikuti langkah-langkah negara luar yang telah duluan menggunakanya.
Jenis dan Type Mesin Las Pipa PE

Jenis Butt Fusion
Manual Butt Fusion Welding Machine SHDS160 & SHDS200
Hydraulic Butt Fusion Welding Machine SHD160 s/d SHD2500

Jenis Elektro Fusion
Electro Fusion Welding Machine SHD315 & SHD630

Jenis Socket Fusion
Socket Fusion Welding SC63 & SC110

Jenis Fitting PE
Butt Fusion Injection Moulding PE100, HDPE ( Elbow, Tee, Reducer, Stub End, End Cap dan jenis Lainya
Electro Fusion Injection Moulding PE80, MDPE ( Elbow, Tee, Reducer, Stub End, End Cap, Coupler/Socket, Tapping Saddle dan jenis lainnya )
Socket Fusion Injection Moulding PE100, PPR ( Elbow, Tee, Reducer, Stub End, End Cap, Coupler/Socket dan jenis lainnya )
Compression Fitting Injection Moulding PE100, HDPE ( Elbow, Tee, Reducer, Stub End, End Cap, Coupler/Socket, Male Thread Adaptor dan jenis lainnya )

Jenis Merek Pipa HDPE

Tyco
Maspion
Wavin
Indopipe
Vinilon
Unilon
Pralon
Denya
Tampilkan Lebih Banyak
