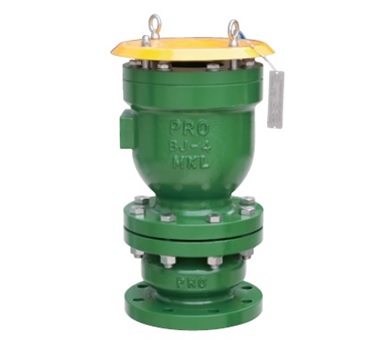

AIR RELEASE & VACUUM BREAKER WITH SURGE CHECK VALVE
Gambar Produk
AIR RELEASE & VACUUM BREAKER WITH SURGE CHECK VALVE
Brand
PROSAVE
Minimum Pembelian
1 Unit
Maximum Pembelian
20 Unit
Pengiriman
90 Hari Setelah Pembayaran
Lokasi
Jawa Barat - Bekasi - Jati Sampurna
Harga
Kontak Kami
Dilihat Sebanyak
142 kali
Update Terakhir
19-06-2019
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi AIR RELEASE & VACUUM BREAKER WITH SURGE CHECK VALVE
AIR RELEASE & VACUUM BREAKER WITH SURGE CHECK VALVE

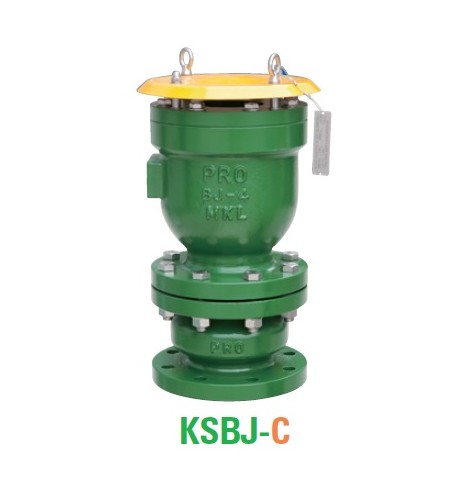

Model : KSBJ-C TYPE
Merk : Prosave
Origin : Korea
Benefits :
* Designed to perform the same function as Air Release & Vacuum
Breaker Valve
Breaker Valve
* Reinforced the function of protection for surge pressure
* Usually to be applied more than the 4" valve size
General Description :
It is two critical time in the operation of a pipeline.
During filling, air that occupies the empty pipe must be evacuated ahead
of the incoming liquid in a controlled and efficient manner so that surge
and water hammer are minimized and liquid completely fills the pipe.
During draining, whether planned or unexpected, air must be admitted
into the system to replace the out flowing liquid to avoid excessive vacuum
and possible pipeline damage.
Air release valve are designed to release accumulated air pockets from the
system, while pressured pipelines. Air pockets increase energy consumption
because pumping operation will be at higher water heads to overcome
pressured air.
Air release valves are have function to protect high shock and surge pressure,
water hammer and liquid overflow from fresh or sea water pipelines.
PROSAVE's valve can provide low cast insurance to protect expensive
maintenance cost of pipelines and pump systems.
