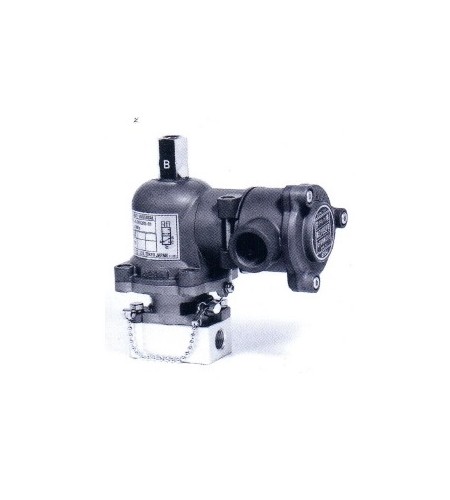

KANEKO THREE WAY SOLENOID VALVE MOOU SERIES
Gambar Produk
KANEKO THREE WAY SOLENOID VALVE MOOU SERIES
Brand
KANEKO SANGYO
Minimum Pembelian
1 Unit
Maximum Pembelian
20 Unit
Pengiriman
60 Hari Setelah Pembayaran
Lokasi
Jawa Barat - Bekasi - Jati Sampurna
Harga
Kontak Kami
Dilihat Sebanyak
200 kali
Update Terakhir
19-06-2019
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi KANEKO THREE WAY SOLENOID VALVE MOOU SERIES
KANEKO SOLENOID VALVE MOOU SERIES
THREE WAY SOLENOID VALVE
Origin : Japan
# Features :
+ Explosion-proof terminal box turns.
+ As the explosion-proof terminal box turns 340 degrees, conduit connections are
easy to make.
easy to make.
+ Universal function.
+ Four modes of operation are possible, depending on the operating environment.
+ Long life of five million operations or more.
+ Compact and light.
+ Particularly explosion-proof type valves are very compact without parallel.
# Standard Specification :
+ Pipe Size : Rc 1/8", Rc 1/4", Rc 3/8”
+ Fluid : Clean air
+ Fluid Temperature : - 20 Deg ~ 60 Deg C
+ Ambient Temperature : - 20 Deg ~ 60 Deg C
+ Duty Cycle : 100% Continuosly rated
+ Operating Voltage Range : + 10%, - 15%
+ Cv. Flow Factor : 0.084 (1.6) & 0.22 (3.0)
+ Orifice Size & Working Pressure :
- Dia. 1.6 ..... 0 ~ 0.7 Mpa
- Dia. 3.0 ..... 0 ~ 0.4 Mpa
A. General-Purpose Type
- Model : MOOU-6-A12PG SIZE : RC 1/8" ORIFICE : 1.6
- Model : MOOU-6-A12PG-01 SIZE : RC 1/8" ORIFICE : 3.0
- Model : MOOU-6-D12PG SIZE : RC 1/8" ORIFICE : 1.6
- Model : MOOU-6-D12PG-01 SIZE : RC 1/8" ORIFICE : 1.6
- Model : MOOU-8-A12PG SIZE : RC 1/4" ORIFICE : 1.6
- Model : MOOU-8-A12PG-01 SIZE : RC 1/4" ORIFICE : 3.0
- Model : MOOU-8-D12PG SIZE : RC 1/4" ORIFICE : 1.6
- Model : MOOU-8-D12PG-01 SIZE : RC 1/4" ORIFICE : 1.6
- Model : MOOU-10-A12PG SIZE : RC 3/8" ORIFICE : 1.6
- Model : MOOU-10-A12PG-01 SIZE : RC 3/8" ORIFICE : 3.0
- Model : MOOU-10-D12PG SIZE : RC 3/8" ORIFICE : 1.6
- Model : MOOU-10-D12PG-01 SIZE : RC 3/8" ORIFICE : 1.6
- Model : MOOU-6-A12PG SIZE : RC 1/8" ORIFICE : 1.6
- Model : MOOU-6-A12PG-01 SIZE : RC 1/8" ORIFICE : 3.0
- Model : MOOU-6-D12PG SIZE : RC 1/8" ORIFICE : 1.6
- Model : MOOU-6-D12PG-01 SIZE : RC 1/8" ORIFICE : 1.6
- Model : MOOU-8-A12PG SIZE : RC 1/4" ORIFICE : 1.6
- Model : MOOU-8-A12PG-01 SIZE : RC 1/4" ORIFICE : 3.0
- Model : MOOU-8-D12PG SIZE : RC 1/4" ORIFICE : 1.6
- Model : MOOU-8-D12PG-01 SIZE : RC 1/4" ORIFICE : 1.6
- Model : MOOU-10-A12PG SIZE : RC 3/8" ORIFICE : 1.6
- Model : MOOU-10-A12PG-01 SIZE : RC 3/8" ORIFICE : 3.0
- Model : MOOU-10-D12PG SIZE : RC 3/8" ORIFICE : 1.6
- Model : MOOU-10-D12PG-01 SIZE : RC 3/8" ORIFICE : 1.6
B. Explosion-Proof Type
- Model : MOOU-6-AE12PG SIZE : RC 1/8" ORIFICE : 1.6
- Model : MOOU-6-AE12PG-01 SIZE : RC 1/8" ORIFICE : 3.0
- Model : MOOU-6-DE12PG SIZE : RC 1/8" ORIFICE : 1.6
- Model : MOOU-6-DE12PG-01 SIZE : RC 1/8" ORIFICE : 1.6
- Model : MOOU-8-AE12PG SIZE : RC 1/4" ORIFICE : 1.6
- Model : MOOU-8-AE12PG-01 SIZE : RC 1/4" ORIFICE : 3.0
- Model : MOOU-8-DE12PG SIZE : RC 1/4" ORIFICE : 1.6
- Model : MOOU-8-DE12PG-01 SIZE : RC 1/4" ORIFICE : 1.6
- Model : MOOU-10-AE12PG SIZE : RC 3/8" ORIFICE : 1.6
- Model : MOOU-10-AE12PG-01 SIZE : RC 3/8" ORIFICE : 3.0
- Model : MOOU-10-DE12PG SIZE : RC 3/8" ORIFICE : 1.6
- Model : MOOU-10-DE12PG-01 SIZE : RC 3/8" ORIFICE : 1.6
- Model : MOOU-6-AE12PG-01 SIZE : RC 1/8" ORIFICE : 3.0
- Model : MOOU-6-DE12PG SIZE : RC 1/8" ORIFICE : 1.6
- Model : MOOU-6-DE12PG-01 SIZE : RC 1/8" ORIFICE : 1.6
- Model : MOOU-8-AE12PG SIZE : RC 1/4" ORIFICE : 1.6
- Model : MOOU-8-AE12PG-01 SIZE : RC 1/4" ORIFICE : 3.0
- Model : MOOU-8-DE12PG SIZE : RC 1/4" ORIFICE : 1.6
- Model : MOOU-8-DE12PG-01 SIZE : RC 1/4" ORIFICE : 1.6
- Model : MOOU-10-AE12PG SIZE : RC 3/8" ORIFICE : 1.6
- Model : MOOU-10-AE12PG-01 SIZE : RC 3/8" ORIFICE : 3.0
- Model : MOOU-10-DE12PG SIZE : RC 3/8" ORIFICE : 1.6
- Model : MOOU-10-DE12PG-01 SIZE : RC 3/8" ORIFICE : 1.6
