Jual Digital Theodolite South ET-02 Magnification

Digital Theodolite South ET02
Theodolite Digital South ET-02 dengan akurasi 2"

South ET02 Digital Theodolite memiliki penampilan yang Cerdas, struktur yang wajar, fungsi praktis. Digital Theodolite South ET02 mudah digunakan, dan dengan kinerja yang sangat baik dan kualitas handal (termasuk: teodolit, tribrach, baterai isi ulang NIH, Charger, manual, dan satu tahun garansi produsen).

Specification South ET02 Digital Theodolite

Telescope:
Magnification: 30X
Objective Lens: 45mm
Overall Length: 157mm
Stadai Ration: 100
Stadia Constant: 0
Image: erect
Field of View: 1° 30"
Minimum Focus: 1.4m
Resolving Power: 3.0'

Electronic Angle Measurement:
Reading System Photoelectric detection by incremental encoder
Diameter of Circle (VHz): 79mm
Minimum Reading: 1"/5" (Selectable)
Accuracy: 2"
Horizontal Angle: Dual
vertical Angle: Dual

Display:
(LCD) Display Type: 2 sides, segment LCD in two lines

Level Sensitivity:
Plate Level: 30"/2mm (30" per 2mm)
Circular Level: 8'/2mm (8" per 2mm)

Auto Vertical Compensator:
System: Liquid-electric detection/plate level selectable
Working range: +3'
Accuracy: 1" (Liquid-electric detection) 30""/2mm (plate level)

Optical Plummet Telescope:
Image: Erect
Magnification: 3X
Focusing Range: 0.5m - infinity

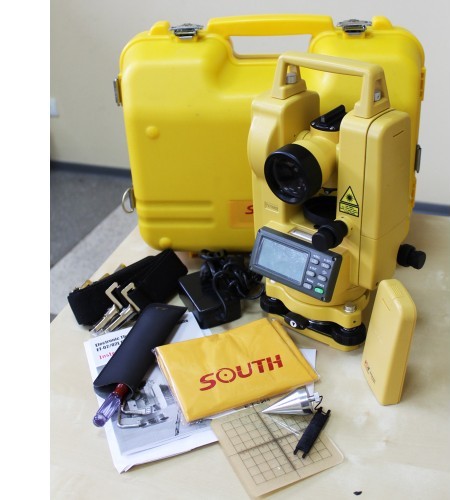

Standar Accesories:

• 1 x Unit SOUTH ET02
• 1 x Alumunium Tripod
• 1 x Levelling staff / Rambu Ukur
