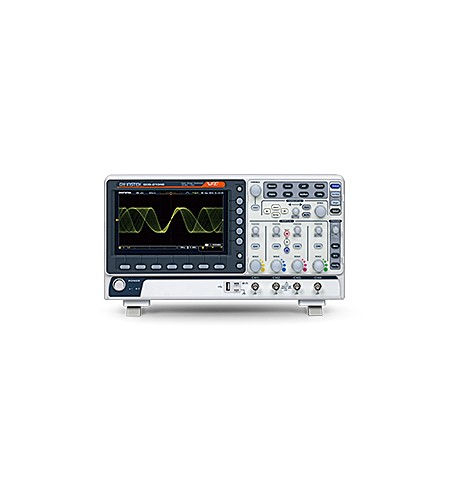

GW INSTEK GDS-2000E

• 200/100/70MHz Bandwidth Selection; 2 or 4 Channels
• 1GSa/s Real-Time Sampling Rate for Each Channel (2ch model) ; 1GSa/s Maximum Real-Time Sampling Rate (4ch model)
• Standard 10M Maximum Memory Depth and VPO Waveform Display Technology
• Waveform update Rate of 120,000 wfm/s
• 8 ” WVGA TFT LCD Display
• FFT with Maximum 1M points to Provide Higher Frequency Domain Resolution Measurement
• High and Low Pass Digital Filter Functions
• 29,000 Sections of Segmented Memory and Waveform Search Functions
• I2C/SPI/UART/CAN/LIN Serial Bus Trigger and Decoding Function
• Data Log Function Tracks Signal Changes Up To 100 hours
• Provide Remote Internet Storage Function

Quick Start Guide x1, User Manual CD x1, Power Code x1

GTP-070B-4 : 70MHz (10:1/1:1) Switchable passive probe for GDS-2072E/2074E (one per channel)
GTP-150B-4 : 100MHz (10:1/1:1) Switchable passive probe for GDS-2102E/2104E (one per channel)
GTP-200B-4 : 200MHz (10:1/1:1) Switchable passive probe for GDS-2202E/2204E (one per channel)

Optional Accessories

GRA-426 Rack Adapter Panel
GAK-003 50 ohm Impedance Adapter
GSC-008 Soft Carrying Case
GTL-246 USB Cable, USB 2.0, A-B Type, 1200mm
GTL-110 Test Lead, BNC-BNC Heads
GDB-03 Oscilloscope Education & Training Kit
GCP-005 Current Probe, 40Hz ~ 1kHz, 5A, Current Probe
GCP-020 Current Probe, DC ~ 100KHz, 10A, Current Probe
GCP-100 Current Probe, 40Hz ~ 10KHz, 20A, Current Probe
GCP-1030 Current Probe, DC ~ 100MHz, 30Arms, Current probe
GCP-206P Current Probe - Power Supply, 2 Channel Power Supply for GCP-530/1030
GCP-245P Current Probe - Power Supply, 4 Channel Power Supply for GCP-530/1030
GCP-530 Current Probe, DC ~ 50MHz, 30Arms, Current Probe
GDP-025 Differential Probe, 25M High Voltage Differntial Probe
GDP-050 Differential Probe, 50M High Voltage Differntial Probe
GDP-100 Differential Probe, 100M High Voltage Differntial Probe
GTP-033A Oscilloscope Probe, 35MHz 1:1 Passive Probe, BNC(P/M)
