WTP SWRO 13,5 TON PERJAM
Perhatian!

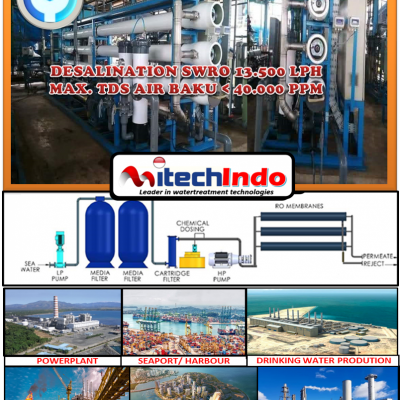

Spesifikasi WTP SWRO 13,5 TON PERJAM
WTP SWRO 13.5 M3 PERHOUR
Machine Performance:
Clean Water Production Capacity 13.500 litre per hour,
Input water quality TDS < 40.000PPM ( recommended)
Output water quality TDS < 400 PPM,
Salt Rejection Rate 98% ,
Recovery Rate( pure water : inlet water) 50~ 75%
Input Power( standard) AC380V / 50Hz
Pre-treatment Filtration:
First stage Pump for Prefilter Pump SUS-316 4KW x 380V
By Multi-Media Filtration 4272"- 2 units
High Flow Catridge 40"- Housing Material by PVC
Size of Pores : 1 Micron
Main Unit:
C.I.P Pump for Membrane Cleaning SUS-316 4 KWx 380V
High Pressure Booster pump ( Axial Piston Pump )
Material DUPLEX SS2205
Membrane SW 8" x 40" 18 PCS
Hi-Pressure Membrane Housing 8” x 240” - 3 Unit
Main frame steel coating
Accessories :
Piping Low pressure: PVC quick connection ,
For Hi-pressure Using Hose, Electrical Parts, VFD-Inverter
Flow metre, TDS & PH metre, pressure metre, electromagnetic valve, etc.
3 Set Dosing Pump + Chemical Tank
and built-in RO membrane washing device,
Total Weight : Approx. < 3000 Kgs
Keterangan lebih lanjut Hubungi kami di : +6285730068486
CV. MITCHELL TECHNOLOGY INDONESIA
SPESIALISASI PERUSAHAAN DIBIDANG :
Design, Perakitan dan Pemasangan Mesin Pengolahan Air , Seperti :
1. MESIN ELECTRO-DEIONIZER/ DEMINERALIZER
2. MESIN DESALINASI AIR LAUT
3. MESIN IPAL & STP TEKNOLOGI MBR
RINCIAN SCOPE PEKERJAAN :
INSTALASI PENGOLAHAN AIR ( WTP, WWTP & STP ) :
A. Water-treatment (WTP)/ Pengolahan Air Baku, Seperti:
Air Baku yang tercemar limbah
Air Baku yang tercemar/ erupsi air laut/ air payau dan air bergambut
Pengolahan Air Laut Menjadi Air Tawar dan Siap Minum
B. Waste-WaterTreatment (WWTP) & Sewage Treatment Plan (STP)
Seperti Pengolahan Air Limbah :
Untuk Konsultasi Silahkan Hubungi kami…….
