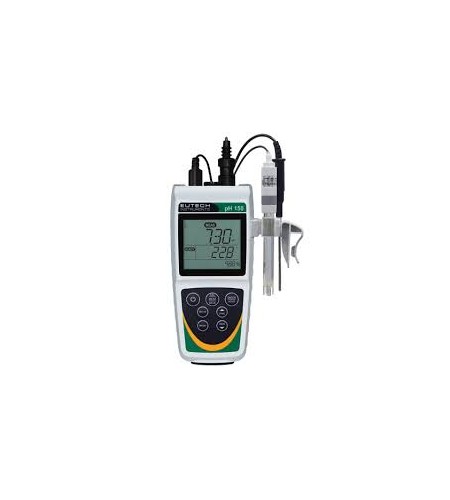

Eutech pH 150

Alat Laboratorium Umum

Specifications

Product Specification

Description
pH
Range -2.00 to 16.00 pH
Resolution 0.01 pH
Accuracy ±0.01 pH
Calibration Up to 5 points (USA & NIST)
Up to 6 points (DIN)
mV
Range ±2000 mV
Resolution 0.1 mV ±999.9 mV; 1 mV beyond
Accuracy ±0.2 mV +2 LSD or +0.5 % of reading;
whichever is greater
Calibration ±200 mV
Temperature
Range -10.0 to 110.0 ºC (14.0 to 230.0 ºF)
Resolution 0.1 ºC/ºF
Accuracy ±0.5 ºC; ±0.9 ºF
Calibration Offset in 0.1 increments, ±10 ºC or ±18 ºF
Others
Display Three line custom LCD
Temperature Compensation Automatic or manual from -10 to 110 ºC
Memory Stores up to 150 data sets
Power Two AA batteries (included), >700 hours continuous use; AC adapter (optional)
Dimensions (L x W x H)
Meter: 7 7/8" x 3 1/8" x 2 1/4" (20 x 8.3 x 5.7 cm)
Boxed: 9 1/8" x 9 1/8" x 2 3/4" (23 x 23 x 7 cm)

Weight Meter: 1 lb (0.5 kg)
Boxed: 1.4 lb (0.7 kg)
Order Information

Order No.

Item
Meter
ECPHWP15000 pH 150 Meter Only: Meter, Grip-Clip™, two AA batteries
ECPHWP15002 pH 150 Meter & Electrode: Meter with double-junction pH electrode and ATC probe, Grip-Clip™, two AA batteries
ECPHWP15002K pH 150 Meter Kit: Meter with double-junction pH electrode and ATC probe, Grip-Clip™, two AA batteries, hard carry case, pH buffers, storage solution,
rinse solution
Electrodes
ECFC7252201B Replacement pH electrode, double-junction, epoxy body, BNC
ECFE7372801W pH electrode with built-in ATC. Double-junction, epoxy body, BNC
ECFC7352901W pH electrode with built-in ATC. Single-junction, epoxy body, BNC
ECFC7960201B ORP electrode. Double-junction, epoxy body, gel-filled, BNC
PHWPTEM01W ATC probe. Use with any standard pH electrode for temperature compensation
Accessories
GRIPCLIP Grip-Clip™
60X426401 Optional 100 / 240 VAC SMPS power adapter, 9 V, 6 W
ECPHBUFKITC pH buffer set, pH 4 (red), 7 (yellow), 10 (blue), 480 mL each
ECPHBUFKIT Colourless pH buffer set, pH 4, 7 and 10 (480 mL each)
