HUMAN VIBRATION METER PCE-VM 31-HAWB1 ( HAND ARM AND WHOLE BODY) || HUMAN VIBRATION
Gambar Produk
HUMAN VIBRATION METER PCE-VM 31-HAWB1 ( HAND ARM AND WHOLE BODY) || HUMAN VIBRATION
Brand
PCE Instruments
Minimum Pembelian
1 Unit
Maximum Pembelian
100 Unit
Pengiriman
3 Hari Setelah Pembayaran
Lokasi
DKI Jakarta - Jakarta Timur - Matraman
Harga
Rp. 1
Dilihat Sebanyak
1.666 kali
Update Terakhir
19-03-2019
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi HUMAN VIBRATION METER PCE-VM 31-HAWB1 ( HAND ARM AND WHOLE BODY) || HUMAN VIBRATION

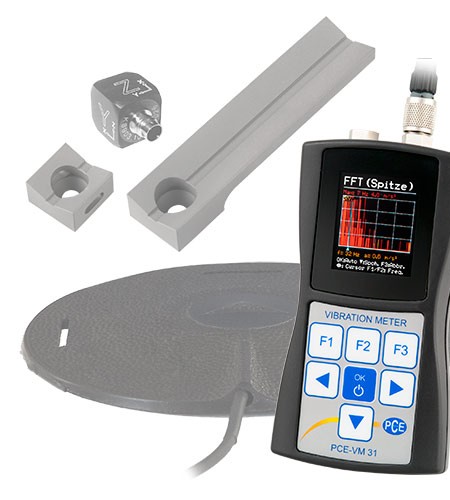

PORTABLE HUMAN VIBRATION METER PCE-VM 31-HAWB ( HAND ARM AND WHOLE BODY)
Human Vibration Meter with Hand-Arm and Whole-Body Sensors PCE-VM 31-HAWB
Portable Human Vibration Meter PCE-VM 31-HAWB (Hand ARM and Whole Body)
Model : PCE-VM 31-HAWB
Produk : PCE Instruments (Inggris)
Fungsi : Adalah alat untuk mengukur paparan getaran mesin pada tubuh manusia
Technical specifications
Human Vibration Meter with Hand-Arm and Whole-Body Sensors PCE-VM 31-HAWB
Portable Human Vibration Meter PCE-VM 31-HAWB (Hand ARM and Whole Body)
Model : PCE-VM 31-HAWB
Produk : PCE Instruments (Inggris)
Fungsi : Adalah alat untuk mengukur paparan getaran mesin pada tubuh manusia
Technical specifications
| Measuring range | Sensor with 1 mV/(m/s²) | Sensor with 10 mV/(m/s²) |
| Acceleration | 1100 m/s² / 3609 ft/s² | 110 m/s² / 361 ft/s² |
| Velocity | 100 mm/s ... 10,000 mm/s 4.0 in/s ... 394.0 in/s (1 kHz/1 Hz) |
10 mm/s ... 1,000 mm/s 0.4 in/s ... 39.4 in/s (1 kHz/1 Hz) |
| Displacement (Peak) | 250 µm ... 15,000 µm 0.01 in ... 0.6 in (5 Hz/250 Hz) |
25 µm ... 1,500 µm 0.001 in ... 0.06 in (5 Hz/250 Hz) |
Display resolution (1 / 10 mV/(m/s²)) |
||
| Acceleration | 0.01 m/s² / 0.4 in/s² | |
| Velocity | 0.1 mm/s / 0.004 in/s | |
| Displacement | 1 µm / 4 x 10-5 in | |
Linearity range |
> 75 dB for ±6 % error |
|
| Noise | < 0.003 m/s² / 0.12 in/s² | |
| Inputs | 4 Low-Power-IEPE inputs; 0.7 mA / 17 V; TEDS support, IEEE1451.4, Template 25 | |
| Sensor sensibility | 0.8 - 120 mV/(m/s²) | |
| Display units human vibration (acceleration) |
Interval RMS vector sum max. running RMS (MTVV) vibration dose value (VDV) |
|
| Display units acceleration, velocity, displacement | running RMS maximum RMS vector sum peak value maximum peak value |
|
| Filters | Weighting filters: Wb, Wc, Wd, Wh, Wj, Wk, Wm | |
| Unweighted: 6.3 - 1259 Hz (H/A) / 0.4 - 100 Hz (G/K) | ||
| Acceleration: 0.1 - 2000 Hz / 1 - 1000 Hz | ||
| Velocity: 1 - 100 Hz / 2 - 1000 Hz / 10 - 1000 Hz | ||
| Displacement: 5 - 250 Hz | ||
| Frequency analysis (FFT) | 125 lines for X/Y/Z, peak spectrum of acceleration, 3 - 240 / 6 - 480 / 12 - 960 / 24 - 1920 Hz | |
| Data memory | Flash, 10,000 measurements, 1,000 FFts, each with date, time and comment | |
| Display | OLED, 128 x 160 pixels, coloured | |
| Interface | USB 2.0, full speed, CDC-mode (virtual COM port), via cable VM2x-USB | |
| Batteries | 3 x 1.5 V AAA batteries or accumulators (LR03 or HR03) | |
| Environmental conditions | -20° C ... +60° C / -4° F ... +140° F < 95 % RH |
|
| Approx. dimensions | 125 mm x 65 mm x 27 mm 4.9 in x 2.6 in x 1.1 in (without connectors) |
|
| Approx. weight | 140 g / 0.31 lbs | |
