Fusion Splicer INNO View 3 | Murah Disini
Gambar Produk
Fusion Splicer INNO View 3 | Murah Disini
Brand
Fusion Splicer INNO View 3
Minimum Pembelian
1 set
Maximum Pembelian
2 set
Pengiriman
1 Hari Setelah Pembayaran
Lokasi
Harga
Kontak Kami
Dilihat Sebanyak
94 kali
Update Terakhir
24-01-2018
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Fusion Splicer INNO View 3 | Murah Disini

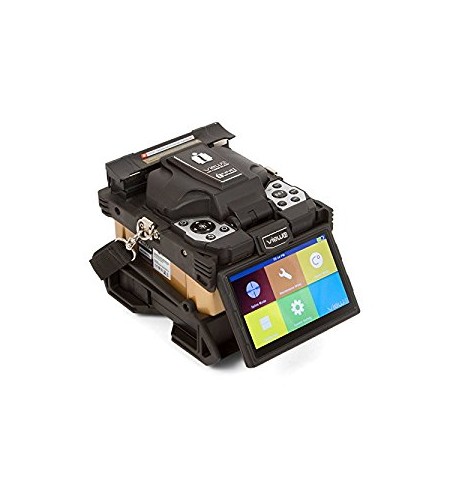

Detail Produk Optical Fiber Fusion Splicer INNO View 3 Splicing
Optical Fiber Fusion Splicer INNO View 3 Splicing Alat sambung serat Optik
FEATURES :
Active V-Groove Clad Alignment Splicing Method
The World’ s Highest Magnification and Resolution
5” High-Resolution Color LCD Touch Screen
User-friendly Smart GUI
Double Tap to Zoom in & out
Detachable SOC Holder and Heating Oven
High Capacity Battery
3 Bright LEDs and Illuminated Keypads
For Dark Environment
Ceramic Clamp for Improved Durability
Easy to Replace Electrodes
Protective Cover
Harsh Weather Conditions Adaptability
1.95kg weight ( without battery)
Specification :
| Model | View 3 |
|---|---|
| Dimension | 143H x 130W x 155D mm (excluding rubber bumper) / 152H x 147W x 175D mm (including rubber bumper) |
| Weight | 2.31KG (with battery) / 1.95KG (without battery) |
| Number of Fiber | Single |
| Applicable Fibers | SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655) |
| Compatible Fiber / Cable | 0.25~3.0 mm / Indoor Cable |
| Cleaved Length | Diameter: 0.125~1 mm / Cleave Length: 8~16 mm |
| Cladding Diameter | 80~150 μm |
| Splicing Mode | Max 128 modes |
| Heating Mode | Max 32 modes |
| Typical Splice Loss | SM:0.03dB / MM:0.02dB / DS:0.05dB / NZDS:0.05dB/G.657:0.03dB(ITU-T Standard) |
| Return Loss | >> 60 dB |
| Lighting | 3 White LEDs |
| Splicing Time | Quick mode : 7 sec / Auto mode : 9 sec |
| Estimated Splice Loss | Available |
| Protection Sleeve Length | 20~60 mm |
| Heating Time | FP-03 typical heating time: 30 sec |
| Results Storage | The last 2000 results |
| Tension Test | 1.96~2.25N |
| Operating Condition | Operating Altitude: 0~5000m above sea level, 0.95% relative humidity, -10~50°C, Max Wind 15m/s |
| Storage Condition | 0~95% relative humidity, -40~80°C |
| Display | 90° bi-directional view, 5.0” Color High Resolution Display |
| Fiber View & Magnification | X, Y, XY, X/Y : 520X Magnification |
| Power Supply | AC Input 100-240V, DC Input 9-14V |
| No. of Splice / Heating with Battery | 4200mAh Battery Capacity, Typical 170 times (Splice+Heat) |
| Operating Methods | Button / Touch screen |
| Automatic Calibration | Automatic arc calibration by air pressure and temperature |
| Electrode Life | 3500 arcs, can be extended by using an electrode grinder |
| Terminal | USB2.0 / MINI USB |
