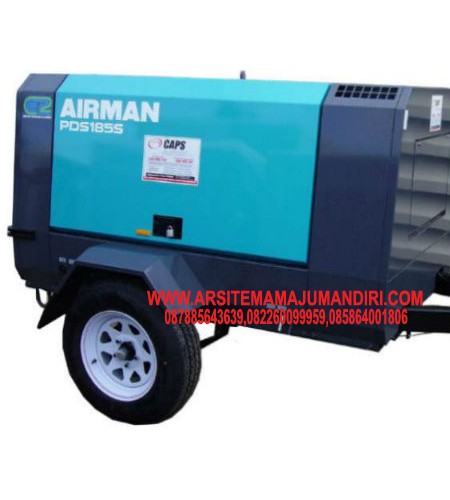

AIR COMPRESSOR AIRMAN PDS 185 S

AIR COMPRESSOR AIRMAN PDS185S
Portable Diesel Compreeor

Trailer mounted portable compressors to supply air energy at various construction sites

• The wide range of models complies with different customer’s requirements.
• The main features are compact structure, low noise, excellent performance and easy maintenance.
• AIRMAN compressors are made with the highest standards to deliver reliable air power where ever it is required.

Technical Data COMPRESSOR AIRMAN PDS185S

• Model PDS185S
• Type Trailer
• Free Air Delivery [m³/min] 5.2
• Rated Operating Pressure [kgf/cm²/mpa/PSIG] 7.0/0.69/100
• Dimensions L×W×H [mm] 2,960 x 1,650 x 1,510
• Operating Weight [kg] 960

Benefits used COMPRESSOR AIRMAN PDS185S

• Profitable
• Fuel economy & component wear reduced via low engine idle at 1,300RPM. (This is less than half the speed of some other makes).
• Convenient Access & Storage.
• Gull-wing style doors mounted with gas struts on side of compressor which allows for easy access for storage and maintenance.
• Exceptional Productivity
• Unique selectable AutoPurge mode saves up to 30 of idling fuel consumption. Massive 95 litre fuel tank offers an extended length of operation between refills.
• Maintenance made Easier & Faster.
• Side by side radiator and oil cooler. - More efficient and easy to clean.
• Accessible oil/air filters together with cartridge type fuel filter enables service time and costs to be kept to a minimum.
• Hand operated compressor oil and fuel drains.
• External water and oil drains.
