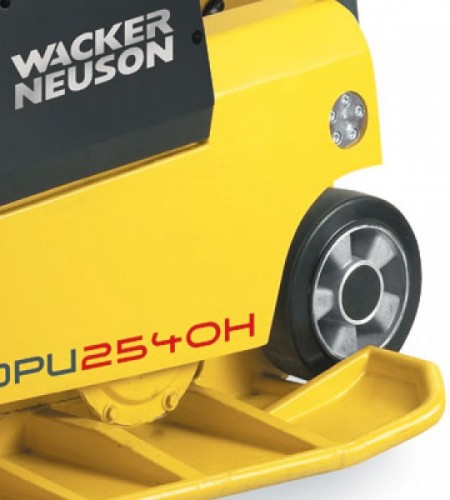

Plate Compactor Wacker Neuson DPU2540H
Gambar Produk
Plate Compactor Wacker Neuson DPU2540H
Minimum Pembelian
164000000 Unit
Pengiriman
2 Hari Setelah Pembayaran
Lokasi
Banten - Tangerang - Tangerang
Harga
Kontak Kami
Dilihat Sebanyak
83 kali
Update Terakhir
01-01-2018
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Plate Compactor Wacker Neuson DPU2540H
Spesifikasi Plate Compactor Wacker Neuson DPU2540H
| Description | Data |
| Operating Weight | 160 kg |
| Shipping Weight Incl. Packaging | 172 kg |
| Shipping Size L x W x H | 760 x 470 x 1290 mm |
| Baseplate (W x L) | 400 x 703 mm |
| Working Width | 400 mm |
| Machine Height (without guide handle) | 736 mm |
| Working Height of Handle | 800 - 1143 mm |
| Baseplate Thickness | 10 mm |
| Max. Centrifugal Force | 25 kN / 5625 lbf |
| Vibration Frequency | 90 Hz / 90 vpm |
| Max. Forward / Reverse Travel | 21 m/min |
| Max. Gradeability (depending on soil) | 30% |
| Compacted Area (depending on soil) | 504 m2/h |
| Engine | Hatz 1B20 Air-Cooled Single Cylinder 4-Stroke Diesel Engine |
| Max. Rated Power @ Rated Speed* | 3.5 kW / 4.6 hp @ 3600 rpm |
| Power Rating Specification | DIN ISO3046 |
| Rated Power Output | 1.5 kW / 2.01 hp @ 2800 rpm |
| Displacement | 243 cm3 |
| Fuel Consumption | 0.4 litres/h |
| Tank Capacity | 3 litres |
| Max. allowable tilt of engine in continuous operation | 25° |
| Power Train | from drive engine via centrifugal clutch and V-belt directly to the exciter |
