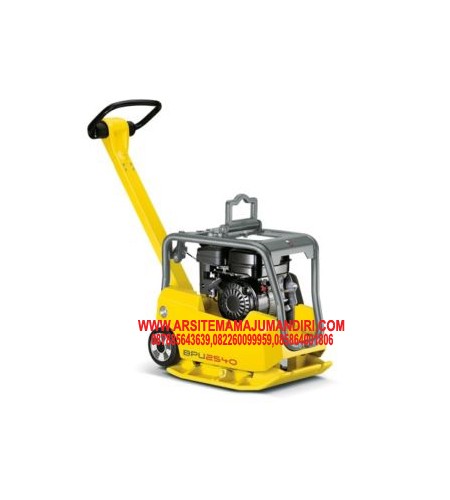

Plate Compactor Wacker Neuson BPU-2540A
Gambar Produk
Plate Compactor Wacker Neuson BPU-2540A
Update Terakhir
01-01-2018
Minimum Pembelian
1 Unit
Dilihat Sebanyak
34 kali
Lokasi
Banten - Tangerang - Tangerang
Harga
Rp. 146.000.000
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Plate Compactor Wacker Neuson BPU-2540A
Spesifikasi Plate Compactor Wacker Neuson BPU-2540A
| Description | Metric | Inch | ||
| Operating weight | 140 | kg | 309 | lb |
| Working width | 400 | mm | 15.8 | in |
| Machine height | 647 | mm | 25.5 | in |
| Working height of handle (adjustable) | 800 - 1.143 | mm | 31.5 - 45.0 | in |
| Base plate thickness | 10 | mm | 0.4 | in |
| Max. centrifugal force | 25 | kN | 5.625 | lb |
| Vibration frequency | 90 | Hz | 90 | vpm |
| Max. forward and reverse travel | 21 | m/min | 68.9 | ft/min |
| Gradeability | 30 | % | 30 | % |
| Compacted area (depending on soil) | 504 | m2/h | 5.425 | ft2/h |
| Drive engine | air-cooled single cylinder 4-stroke petrol engine | |||
| Manufacturer | Honda | |||
| Type | GX 160 | |||
| Max. power output | 4,0 | kW | 5.5 | hp |
| at | 3.600 | 1/min | 3,600 | rpm |
| Rated power output | 1,5 | kW | 2.0 | hp |
| at | 2.800 | 1/min | 2,800 | rpm |
| Fuel consumption | 0,8 | l/h | 0.9 | US qt/h |
| Tank capacity | 3,7 | l | 3.9 | US qt |
| Max. allowable tilt of engine in continuous operation | 20 | ° | 20 | ° |
| Power Train | from drive engine via centrifugal clutch and V-belt directly to the Exciter | |||
