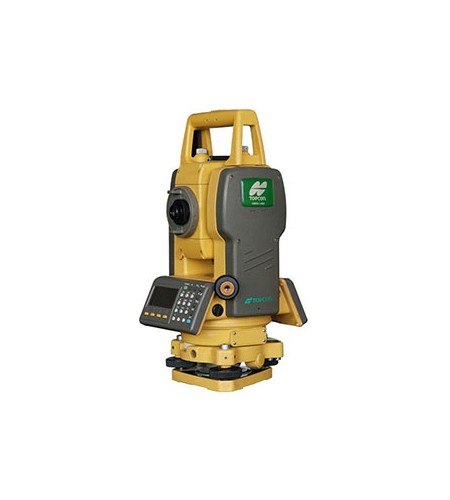

Total Station Topcon GTS-102N
Perhatian!
Spesifikasi Total Station Topcon GTS-102N
The new Topcon GTS-100N series total station combines the traditional Topcon rugged field-ready quality and accuracy with economical, compact design that is perfect for everyday measuring and positioning applications such as topo and construction layout.
GTS-100N features:
Economical, value priced measuring solution
Rugged, durable, water resistant design
Two accuracies to choose from 2" & 5"
Expanded, Full numeric keypad
On board programs & 24,000 point data storage
Ideal as a construction stakeout total station
Perfect when combined with FC field controller and software
The entry-level value choice is the GTS-100N. Built with legendary Topcon precision and durability, the GTS-100N provides the construction professional with a dedicated lay-out solution. Use the on-board software to layout points in the field, confident that with Topcon, you'll be right on target. or use any of Topcon's field controllers running one of our range of software packages tailored to the tasks you want to perform.
|
Specifications |
|
|
Telescope |
|
|
Length |
150 Millimeters |
|
Objective Lens Diameter |
45mm (EDM:50mm) |
|
Magnification |
30x |
|
Image |
Erect |
|
Field of View |
1°30 |
|
Resolve Power |
3 " |
|
Min. Focus Distance |
1.3 meters |
|
Measurement Range |
|
|
1 Prism |
6500 ft, 2000 meters |
|
3 Prism |
8800 ft, 2700 meters |
|
Measuring Accuracy |
|
|
Prism Mode |
±(2mm + 2ppm x D)m.s.e. fine, N/A |
|
measurement time |
1mm: 1.2sec. (Initial 4sec.) fine, 0.2sec. (Initial 3sec.) coarse, N/A |
|
Angle Measurement |
|
|
Method |
Absolute Reading |
|
Detection |
2 horizontal, 1 vertical |
|
Minimum reading |
N/A, 1/5 mgon |
|
Tilt Correction |
|
|
Type |
Single Axis |
|
Method |
Liquid surface reflective profile sensor reading type |
|
Compensating Range |
±3' |
|
Correction Unit |
1 arc sec, N/A |
|
Computer Unit |
|
|
Display |
2 screen, dot matrix graphic LCD display |
|
Power |
|
|
Approximate battery life |
9 including distance measurement, 40 Angle measurement only |
