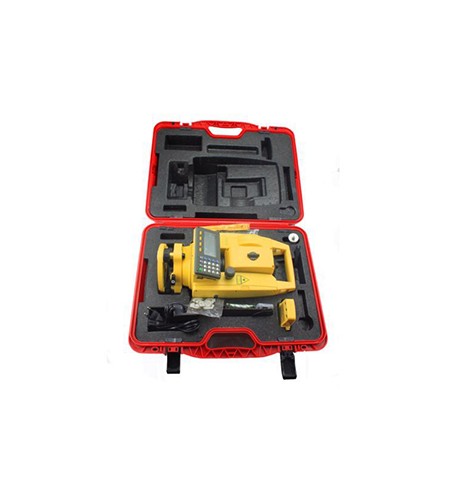

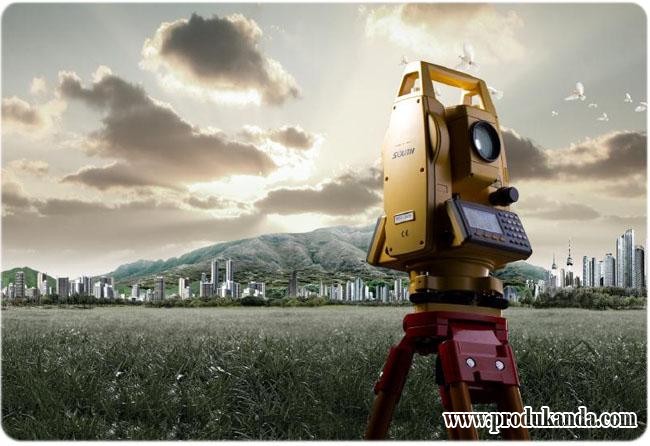

Jual Total Station South NTS 362R
Perhatian!
Spesifikasi Jual Total Station South NTS 362R
Quick Details
Place of Origin:China (Mainland)
Brand Name:SOUTH
Model Number:NTS-362R
Reflectorless:300m
With single Prism:5km
Measuring method:absolute encode
Accuracy:2mm+2ppm.D
measuring time:Fine mode:1.2S;Tracking mode:0.5s
Specifications
Absolute Encoding Disk;
Six-line large LCD;
Dual Axis Compensation;
SD card Function and USB interface;
Different Main Board
|
NTS-362R
|
|||
|
Telescope:
|
|||
|
|
Erect
|
||
|
Magnification
|
30×
|
||
|
Effective aperture
|
Telescope:45mm(EDM:50mm)
|
||
|
Resolving power
|
3″
|
||
|
Field of view
|
1°30′
|
||
|
Minimum focus
|
1m
|
||
|
Tube length
|
154mm
|
||
|
Angle Measurement
|
|||
|
Measuring method
|
absolute encode
|
||
|
Dia of circle(vertical, horizontal)
|
79mm
|
||
|
Minimum reading
|
1″ 5″Selectable
|
||
|
Detection method
|
Horizontal: Dual Vertical: Dual
|
||
|
Accuracy
|
2″
|
||
|
Distance Measurement:
|
|||
|
Max. Range
|
single prism
|
5km
|
|
|
Reflectorless
|
300m(object in shade,or sky overcast)
|
||
|
Displaly
|
Max:99999999.9999m Min:0.1mm
|
||
|
Unit
|
m/ft
|
||
|
Accuracy
|
Reflectorless
|
Fine
|
±(5mm+2ppm·D)
|
|
Tracking
|
±(10mm+2ppm·D)
|
||
|
Reflector
|
Fine
|
±(2mm+2ppm·D)
|
|
|
Tracking
|
±(5mm+2ppm·D)
|
||
|
IR sheet
|
±(5mm+2ppm·D)
|
||
|
measuring time
|
reflectorless
|
Fine mode:<1.2S;Tracking mode:<0.5s
|
|
|
reflector
|
Fine mode:<1.2S;Tracking mode:<0.5s;IR sheet mode:<1.2S
|
||
|
Atmospheric correction
|
Auto correction ,manual input
|
||
|
Atmosphericrefraction and earth curvature correction
|
Auto correction ,manual input
|
||
|
prism constant correction
|
Auto correction ,manual input
|
||
|
Vial
|
|||
|
Plate vial
|
30″/ 2mm
|
||
|
Circular vial
|
10′/2mm
|
||
|
Auto Vertical Compensator
|
|||
|
Type
|
Dual axis Liquid-electric
|
||
|
Compensation range
|
±3′
|
||
|
Accuracy
|
3″
|
||
|
Optical Plumment
|
|||
|
|
Erect
|
||
|
Magnification
|
3×
|
||
|
Focusing range
|
0.5m~∝
|
||
|
Field of view
|
5″
|
||
|
On-board Battery
|
|||
|
type
|
Ni-H ,Rechargeable
|
||
|
Voltage
|
DC 6V
|
||
|
Continuous operation time
|
8 hrs
|
||
|
Others
|
|||
|
Display
|
LCD, 6 lines ,digital
|
||
|
Data Communication
|
RS-232C,USB,SD
|
||
|
Operating temperature
|
-20°~+45ºC
|
||
|
Dimension
|
160×150×330mm,5.2kg
|
||
