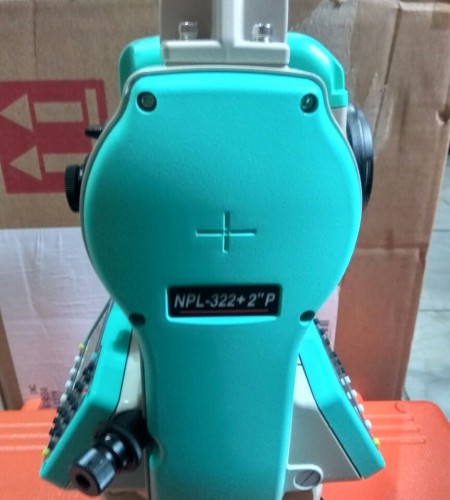

TOTAL STATION NIKON NPL-322+ 2P Akurasi 2
Perhatian!
Spesifikasi TOTAL STATION NIKON NPL-322+ 2P Akurasi 2
Dengan EDM yang cepat dan akurat, Total Station Nikon NPL 322+ P memiliki jangkauan hingga 9.840 kaki menggunakan prisma tunggal. Ideal untuk survei dan pekerjaan konstruksi, ia menggunakan anjlok optik untuk pengukuran yang tepat dan andal. Selain itu, NPL 322+ P memiliki fitur kompensasi sumbu ganda untuk mengoreksi kesalahan kemiringan baik pada sumbu horizontal maupun vertikal.
Untuk transfer data yang mudah, total station Nikon ini memiliki Bluetooth terintegrasi, memori internal 25.000 poin, dan port serial RS-232C. Mudah digunakan dengan keyboard numerik penuh dan layar LCD grafis backlit. Plus, ia datang dengan laser pointer Kelas 2.
Dengan peringkat perlindungan IP55, NPL-322 + P tahan terhadap debu dan air. Menggunakan baterai isi ulang Li-ion yang tahan lama yang memberi daya pada perangkat hingga 22 jam. Selain itu, ia ringkas dan ringan dengan berat 11 pound.
Opsi Konfigurasi
Nikon NPL 322+ P Total Station menawarkan dua akurasi sudut. Silakan pilih dari menu drop-down di atas.
HQA46610: Nikon NPL 322+ P 5 Total Station Kedua, Tampilan Tunggal
HQA46600: Nikon NPL 322+ P 2 Total Station Kedua, Layar Ganda
Features for the Nikon NPL 322+ P Total Station
- Choice of 2 accuracies
- Up to 9,840 feet range with a single prism
- Optical plummet
- Dual-axis compensation
- Internal Bluetooth
- Internal memory of 25,000 points
- RS-232 serial port
- Class 2 laser pointer
- IP55 dustproof and water resistant
- Long-lasting Li-ion rechargeable battery
- Up to 22 hours battery life
- Dual-face full numeric keyboard
- Backlit graphic LCD display
- Fast, accurate EDM
- Compact, lightweight total station
Specifications for the Nikon NPL 322+ P Total Station
|
General
|
|
| Weight | 11 lbs (5 kg) |
| Dimensions | 6.8" L x 6.6" W x 13.1" H (17.27 cm x 16.76 cm x 33.27 cm) |
| Warranty | 2-year |
| Protection Class | IP55 dustproof and water jet resistant |
| Tripod Thread | 5/8-11 |
| Auto Shut Off | No |
| Internal Memory | 25,000 points |
| Software | None |
| Tribrach | No |
| Auto-Tracking Speed | No |
| Guide Light | No |
|
Angle Measurement
|
|
| Measuring Method/Reading System | Incremental encoder |
| Detection Method | Photoelectric |
| Minimum Reading | 1 second/ 5 second/ 10 second |
| Accuracy | 2 second (HQA46600); 10 second (HQA46610) |
| Diameter of Circle | 3.46-inch (88 mm) |
| Display Method | No |
|
Distance Measurement
|
|
| Unit of Measure (distance display) | m/ft |
| EDM Accuracy (Precision) | 2 mm + 2 ppm |
| Minimum Reading | Up to 1,312 feet (400 m) |
|
Tilt Sensor/Compensator
|
|
| Range | ±3' |
| Type | Dual-axis |
| Method | Liquid-electric detection |
| Setting Accuracy | No |
|
Battery/Power
|
|
| Power Source | 2 × Li-ion rechargeable batteries |
| Battery Life | Up to 22 hours (continuous angle measurement); Up to 11 hours (distance/angle measurement every 30 seconds); Up to 4 hours (continuous distance/angle measurement) |
| Battery Life Alert | No |
| Voltage | 3.8-volt DC |
|
Optical Plummet
|
|
| Image | Erect |
| Magnification | 3x |
| Field of View | 5° |
| Focus Range | 1.6 ft. (0.5 m) to infinity |
|
Level
|
|
| Plate/Tubular Bubble Vial | 30 second (2 mm) |
| Circular Bubble Vial | 10 minutes (2 mm) |
| Electronic Level | No |
|
Telescope
|
|
| Length of Tube | 4.9 in (125 mm) |
| Image | Erect |
| Diameter of Objective Lens (Aperture) | 1.77 in (45 mm) |
| Magnification | 30x |
| Field of View | 1°20' |
| Resolving Power | 3" |
| Minimum Focus Distance | 4.9 ft. (1.5 m) |
| Ratio of Stadia Lines | No |
| Sight Distance Precision/Focus Range | No |
| Reticle Illumination | No |
| Reflectorless | Yes |
| Quick Sights (Rough Sights) | No |
|
Display and Keypad
|
|
| Type | LCD Display |
| Sides | Dual (HQA46600); Single (HQA46610) |
| Keys | Full numeric keypads |
| Touchscreen | No |
| Backlight | Yes |
| Pixels | 128 x 64 pixels |
|
Temperature
|
|
| Operating | -4 °F to +122 °F (-20 °C to +50 °C ) |
| Storage | No |
|
Applications
|
|
| Surveying and Construction | Yes |
| Mapping and GIS (geographic information systems) | Yes |
| Utilities | Yes |
| Environment Studies | Yes |
| Geomarking | Yes |
| Archaeology | Yes |
| Accident Reconstruction | Yes |
|
Measurement Range (under fair weather conditions)
|
|
| Single Prism | Up to 9,840 ft. (3,000 m) |
| Triple Prism | No |
| No Prism | No |
| Mini Prism | No |
| Reflective Tape | No |
| Reflector Sheet | No |
| Cat Eye/Flat Prism | No |
| 360 Degree Prism | No |
|
Functions
|
|
| Coordinate Measurement Point | Yes |
| Angle and Distance Stake Out | Yes |
| Stake Out Line | Yes |
| Offsets | Yes |
| Missing Line | Yes |
| Remote Elevation | Yes |
| Resection | Yes |
| Area Calculation | Yes |
| Real-Time Video Imaging | No |
|
Measurement Time
|
|
| Fine | 1.1 seconds (precise) |
| Rapid | 0.8 seconds |
| Tracking | No |
|
Laser Plummet
|
|
| Accuracy | No |
| Class | No |
| Wavelength | No |
|
Laser Pointer
|
|
| Class | Class 2 |
| Accuracy | No |
| Reflectorless range | No |
| Wavelength | No |
| Range to reflective tape | No |
| Range to glass prism | No |
|
Interface
|
|
| Bluetooth | Internal Bluetooth |
| USB | No |
| Pin Port | RS-232C |
| Operating System | No |
|
RC-PR5 Remote Control System
|
|
| Operating Range | No |
| Measuring Time | No |
|
Auto-pointing
|
|
| One AP Prism | No |
| Reflective Sheet | No |
| 360 Degree Prism | No |
| Mini Prism | No |
