Spesifikasi 4-port Full HD Long-Range VGA & Audio Extender over CAT.5e/6-Taiwan ACAFA FV304T

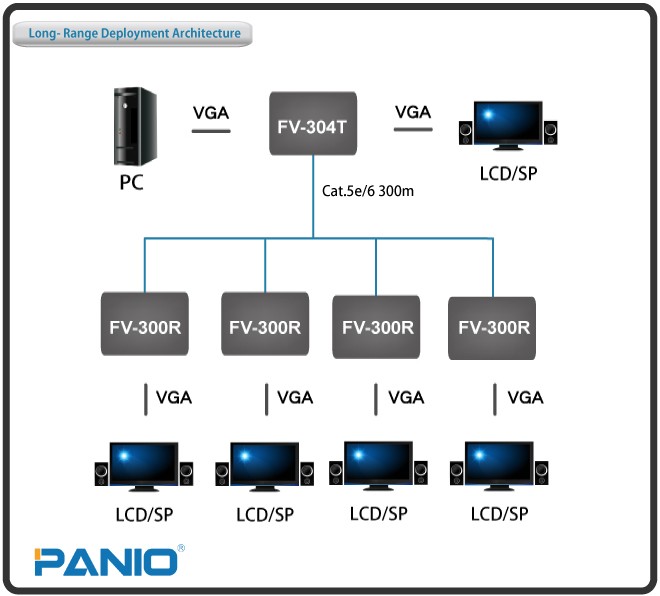

ACAFA FV304T Full HD Long-Range VGA & Audio Extender over CAT.5e/6 (4 ports Transmitter)
It's the latest new designed devices,excellently supports Full HD 1080P,1920X1200@60Hz extending up to 300m
consecutively,and no drive and software installation needed, very easily for user just plug & play.With R.G.B.Auto-
tuned and de-skew function, no need to adjust brightness and contract manually.

Extends VGA & Audio signals by Cat.5e/6 up to 300m.
Supports high resolution up to Full HD 1080P,1920X1200@60Hz,extending to 300m consecutively.
Remote Receiver unit supports video R.G.B.auto-tuned & de-skew function.
Transmitter supports Local VGA monitoring and audio ports.
EDID default and refresh learning by Transmitter.
No software or driver installation required.
Hot plug & play supported.
Made in Taiwan.




1 x FV304T Transmitter
1 x FV300R Receiver
2 x DC 5V / 2A Power Adaptor


Model

FV304-Transmitter



Transmitter Connect
VideoOut
1×HDB-15I(Female )

Video In
1×HDB-15I(male )

Audio Out
1×Mini Stereo Jack Female(Green)
Audio In
1×Mini Stereo Jack Female(Green)

Receiver Connect
Video Out
N/A

Audio Out
N/A

Video Adjustment
Focus
N/A

Brightness
N/A

Extend Port
4×RJ-45

DDC,DDC2 Screen
Suport DDC,DDC2，DDC2B
CAT. Type & Length
CAT.5e/6，Max Distance：300m
Resolution
Max. Resolution：Full HD 1080P,1920×1200@Hz
Operating systems supported
Windows,Linux,Mac OS/OSX and Sun Microsystems
Power Supply
DC5V / 2A Adaptor
Dimension (L x W x H)
127.5×74×27.7mm

Housing Material
Metal
Operating Temperature
32 - 122°F ( 0 - 50°C )
Humidity
0% - 80% RH




Tampilkan Lebih Banyak

PANIO Information Company

 Panio, a privately held company founded in 2000, is the recognized leader in connectivity solutions in Tai wan . we offers a diverse product mix that provides with KVM,Audio & Video Extender, Video Switch & Splitter and new coming high technology product, which extracts the full performance potential equipment, while offering elegant designs and advanced features.
