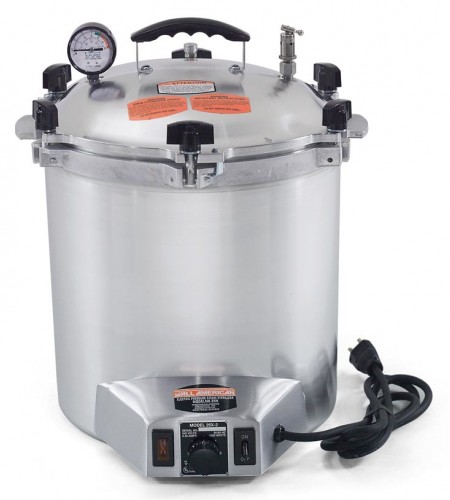

ALL AMERICAN AUTOCLAVE MODEL 25X , 50X & 75X

Portable Sterilizers ( Autoclave )
Model : 25X  Discontinued      penggantinya  adalah  model 50X
Model : 50X
Model : 75X

ALL-AMERICAN steam sterilizers are user world-wide to sterilize a wide range of materials.
Temperature, pressure, and time are the main factors in this process.

All-American Sterilizers make it possible for doctors, dentists, first aid stations, hospitals and laboratories to have dependable sterilization facilities in a portable unit at an extremely low cost.

The need for infection control has never been greater. Controlling Microbial contamination is the most essential component of an infection control program. Proper instrument sterilization protects the patient and the health care professional from cross-infection and disease.


50X  Features :
• 1650 watt heating element for faster start-up, 50% faster than 25X
• 36% greater heating capability compared to 25X
• More accurate TPI thermocouple, snapswitch and pilot light
• 60 minute mechanical bell timer
• 120 or 240 volt operation
• 25 qt/24 liter capacity

75X Features:
* 64% greater capacity compared to 25X
* 240 Volt operation
* 1650 watt heating element for faster operation
* More accurate TPI thermocouple, snapswitch and pilot light
* 60 minute mechanical bell timer
* Extra large 41 qt/ 39 liter capacity

Technical Data Products
Model 25X
Model 75X

Specifications :
- Electricity : 240V, 50/ 60Hz, 1050 watts/ 8.75-4.38 amps
- 240V, 50/ 60Hz, 1650 watts/ 13.75-6.88 amps.

Gross Capacity:
- 25 qt/ 24 liter
- 41 qt / 39 liter

Overall Height : 42.5cm X 48.3cm
Bottom Height : 31.2cm X 36.2cm
Inside Diameter 32.1cm X 38.7cm

Unit Weight : 11.8kg & 20.4kg

Inner Container No.2156 -
Height : 21.6cm X 26cm

Inner Container No.2156 -
Diameter : 28.3cm X 35.6cm
Inner Container No.2156 - Circumference 91.1cm X 113cm

Inner Container No.2156 -
Capacity : 13.7 liter & 25.8 liter
