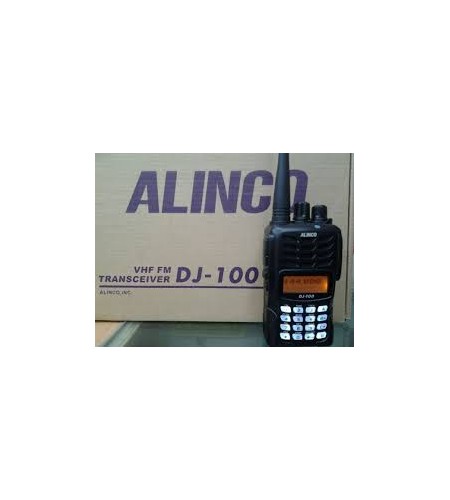

HT Alinco DJ 100 VHF
Perhatian!
Spesifikasi HT Alinco DJ 100 VHF
Detail Produk HT Alinco DJ 100 VHF
The Alinco DJ-100 sets new standards in features, convenience and easy operation. The DJ-175 sports an alphanumeric display for easy memory management. It has an ergonomic design that is user friendly and the 5-watt output battery is standard. Be prepared for virtually any selective calling situation or gaining access to repeaters with 39-tone CTCSS, 104 DCS, Tone-bursts and DTMF encoding, all included at no extra cost. Best of all, DJ-175 retains the proud Alinco tradition of quality construction and excellent value. Enjoy extended receive coverage from 136-173.995 MHz.
Each DJ-175T comes standard with: flexible SMA antenna, EBP-72 NiMH battery pack and EDC-146 wall adapter and EDC-165 NiMH drop-in trickle charge stand.
Features :
- Scanning
- 200 Memories
- NiMH Battery
- Backlit Display/Keypad
- Encode/Decode
- Tone Bursts
- Wire cloning capable
- 5/2/0.5 W output
Spesifikasi – Alinco DJ 100 VHF Single Band
Specifications
| Frequency Coverage: | TX: 144 – 147.995 MHz RX: 136 – 173.995 MHz |
| Signal Type: | F3E [FM] |
| Receiver System: | Double Conversion Super-heterodyne |
| Channel Step: | 5, 10, 12.5, 15, 20, 25, 30 kHz. |
| Memory Channels: | 200 memory channels+ 1 call channel |
| Tone Encoder: | 39 tone encoder standard |
| Deviation: | ± 5 kHz |
| TX Output: | 5/2/0.5 Watts |
| TX Spurious emissions: | Not more than -60dB |
| Frequency Stability: | ± 5 ppm (-10 to +50° C.) |
| Sensitivity: | Better than -15 dBu (12dB SINAD) at 145 MHz |
| Selectivity: | ± 6 kHz -6dB |
| I.F.: | 1st = 21.7 MHz, 2nd = 450 kHz |
| Power Supply Requirements: | 7.2VDC via battery only |
| Current Consumption: | TX: 1500 mA, RX: 250 mA, Standby 70, Batt Save: 30mA |
| Antenna Jack: | SMA |
| Size: | 2.28 x 4.23 x 1.43 inches 8.7 oz without projections |
