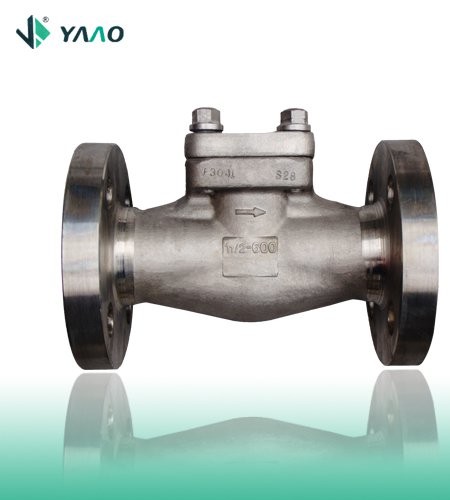

Flanged A182 F304L Forged Check Valves

Pengiriman

15 Hari Setelah Pembayaran

Lokasi

Bali - Badung

Harga

Kontak Kami

Dilihat Sebanyak

123 kali

Update Terakhir

03-03-2017

+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi Flanged A182 F304L Forged Check Valves

China Valve For Sale

Design Specifications:

Body Material: A182 F304L.

Size: from NPS 1\2 to NPS 4 Inch.

Class: from ASME 150 to ASME 2500LB.

Design: API 602, ISO 15761, ASME B16.34.

Wall Thickness: API 602, ASME B16.34.

Pressure-temperature Rating: ASME B16.34.

Face-to-face Dimensions for Flanged Valves: ASME B16.10.

Flange Design: ASME B16.5.

Socket Weld Ends to ASME B16.11.

Screwed Ends (NPT) to ASME B1.20.1.

Butt Welding Ends: ASME B16.25.

Pressure Testing: API 598.

More Body Materials:

A105, A182 F304, A182 F304L, A182 F316, A182 F316L, A352 LF2, A352 F11, A352 F22, A352 F5, A352 F51, A352 F321.

Quality Assurance (QA):

Every step from procurement through production, welding, assembly, testing, and packaging is in accordance with quality programs and procedures (ASME Section III manual and ISO 9001 manual).

Manufacturer: China Yaao Forged Valve Co., Ltd

Sales Contact: Jeasin Lee

Sales email: sales@yaaovalve.com

China Yaao Forged Valve Co., Ltd

China YAAO Valve Co., Ltd. specializes in the design and manufacture of forged valves (Forged Steel Gate Valve, Check Valve, Globe Valve, Forged Ball Valve, Pneumatic Valve Actuator & Valve Limited Switch) for more than 30 years and has created a excellent reputation of quality and economical products in global market.

YAAO Valve Company conducts scientific research, development, production, distribution and after sales service. We have our own forged factory, CNC machining use in all production processes, and do phosphate processing by ourselves. YAAO provides a wide range of valves including Forged Steel Gate Valves, Forged Steel Globe Valves, Forged Steel Check Valves, Forged Steel Ball Valves, which comply with the API 602, CE, TS, ISO and other international standards. Our designs are specially made to give high degree reliability, sustainability, durability, and highest standards in the entire production process.

The innovative products are applied in gas, oil, refining, chemical, power generation and pipeline transmission industries. Our products are exported to over 40 countries e.g. USA, UK, Germany, Italy, Iran, UAE, Singapore, Brazil, South Africa, etc.

China Yaao Forged Valve Co., Ltd

Free Member

NO. 111, Caoli Road, Fengjing Town, Jinshan District, Shanghai, China

Bali - Badung

Login Terakhir 03-03-2017

86-21-67360922
