Ultrasonic Anemometer
Heated

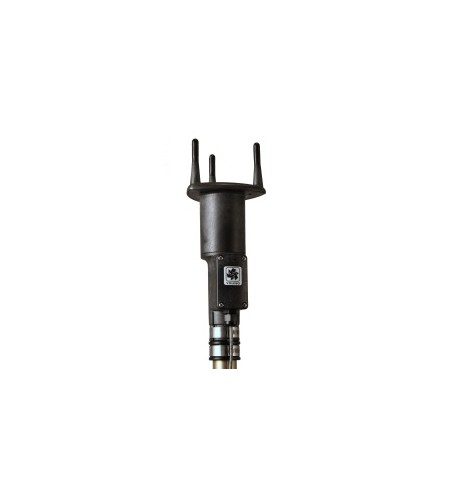

Model 86004
Introducing the YOUNG Model 86004 next generation 2D Ultrasonic Anemometer. The sensor offers high performance and low power consumption in a compact size. It is ideal for the most demanding wind sensing applications. For extended cold weather use, the 86004 features thermostatically controlled heaters in transducer and housing surfaces.
The sensor features durable, corrosion-resistant construction with sensitive ultrasonic transducers secured in a streamlined molded frame. The 86004 is fully wind tunnel tested and calibrated to provide accurate wind measurement over a wide operating range. The standard sensor includes many useful output options. Analog voltage outputs are provided for wind speed and wind direction. 4-20 mA current signals are available for each channel and are well suited for long cable runs or for industrial settings where noise immunity is important. A variety of serial output formats are also available. These include ASCII text, RMYT (compatible with YOUNG displays) and NMEA formats. The sensor installs on readily available 1 inch (IPS) pipe. Wiring connections are made in a convenient weatherproof junction box; special mounting adapters and connectors are not required. The 86004 does require sensor cable 86070 which is ordered to the length desired.
Specifications
Wind Speed:
0 to 65 m/s (0 to 145 mph)
Resolution: 0.01 m/s
Threshold: <0.01 m/s
Accuracy: ± 2% ± 0.1m/s (30 m/s), ± 3% (65 m/s)
Response Time: < 0.25 seconds
Wind Direction:
0 to 360 degrees
Resolution: 0.1 degree
Threshold: < 0.01 m/s
Accuracy: ± 2 degrees
Response Time: < 0.25 seconds
Serial Output:
RS-232 or RS-485
Formats: ASCII, ASCII polled, RMYT, NMEA
Baud: 1200, 4800, 9600, 19200, 38400
Units: m/s, MPH, Knots, Km/hr
Wind Format: Speed & Direction or U & V
Status Indicator: Standard with ASCII & NMEA
Analog Outputs:
0–5000 mV or 4–20 mA
Analog Wind Scale: 0–100 m/s
Analog Direction Scale: 0–360 or 0–540 degrees
Output update Rate:
0.1 to 20 Hz
Power Requirement:
24 VDC, 2.5 A
Environmental:
Operating Temperature: -40 to +60 ° C
Protection Class: IP65
Dimensions:
29cm high x 11cm wide
Weight: 0.4 kg (0.9 lb)
Shipping Weight: 1.6 kg (3.5 lb)
