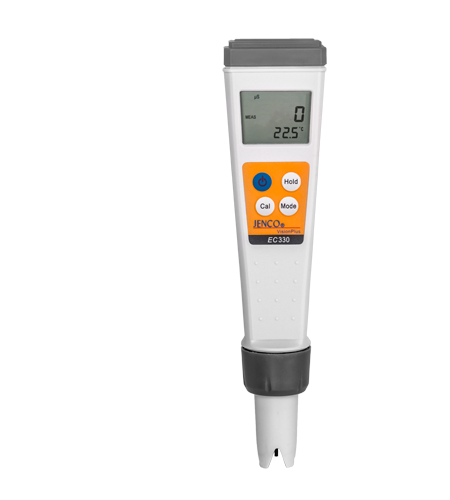

Jenco EC330 is an easy to use, IP67 rated conductivity tester with TDS and temperature readout. Key features include dual display of conductivity or TDS with temperature, selectable or auto ranging, replaceable conductivity cell and IP67 rated body.This tester is RoHS compliant.
- Simultaneous display of conductivity and temperature, or TDS and temperature
- 1 or 2 point calibration
- Automatic temperature compensation
- Selectable or auto ranging of conductivity and TDS readings
- Replaceable conductivity cell
- 6 selectable units of measure (uS/cm, mS/cm, mg/L, g/L, °C, °F
- Data hold
Specifications
Conductivity Range K=1.0
0 uS to 19.9 mS
Conductivity Resolution K=1.0
5 uS to 0.05 mS
Conductivity Resolution K=1.0
± 1 % FS
TDS Range K=1.0
0 mg/L to 10.00 g/L
TDS Resolution K=1.0
5 mg/L to 0.05 g/L
TDS ACCURACY K=1.0
± 1% FS
Temperature Range (°C)
0.0 to 99.5 °C
Temperature Resolution (°C)
0.5 °C
Temperature Accuracy (°C)
± 0.5 °C
Temperature Range (°F)
32 to 212 °F
Temperature Resolution (°F)
1 °F
Temperature Accuracy (°F)
32 to 212 °F
Temperature Compensation
Automatic from 0.0 to 60.0 °C
Temperature Coefficient
1.91% / °C
Reference Temperature
25 °C
TDS Constant
0.50
Calibration
1 or 2 point (1415uS at 0~1999uS/cm range; 12.90mS at 0~19.99mS/cm range)
Electrode Type
Two wire conductivity cell
Temperature Sensor
Thermistor, 10k ohms, at 25 °C
Temperature Unit
°C and °F
Display
LCD
Power
LR44 x 4 batteries
Battery Life
>100 hours
Auto Power Off
After 10 minutes of inactivity
Case
IP-67 dust-proof and water-proof up to 1 meter
Weight
105 grams (Including batteries)
Dimensions (W x D x H)
19.3 x 4.4 x 2.5 cm
