Spesifikasi Jual Cross Multi Line Laser Geo Fennel FL 80 Tracking Liner SP | Murah

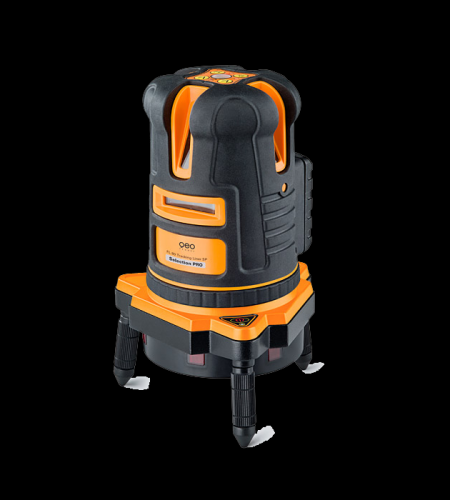

Cross Multi Line Laser Geo Fennel FL 80 Tracking Liner SP
Description Cross Multi Line Laser Geo Fennel FL 80 Tracking Liner SP
The new FL 80 Tracking Liner SP is the latest product in our Selection PRO range which redefines innovation and ease of use.Due to its tracking function it is unique when compared to all other products in its category.
The vertical laser line automatically aligns with the on-grade position of the receiver. This self-alignment of the instrument eliminates arduous manual alignment.
Features
- 4 vertical lines at 90° to each other
- 1 horizontal line with a 130° arc
- Laser cross to the ceiling
- Plumb down beam
- self-levelling compensator with magnetic damping
- Tracking function up to 30 m
- 360° horizontal orientation in either motorized or manual mode
- Use with FR 57-TR receiver (incl.) to extend the working range up to 80 m (w/o tracking)
- Self-levelling function can be switched off for manual use
- Slow motion screw for fine adjustment
- Audible and visible alarm when instrument is out of level
Supplied with
- FR 57-TR receiver
This receiver is required when using the tracking function but it can also be used as a standard receiver
- a floor tripod
- magnetic target
- Li-Ion battery pack with charger
- battery case for the optional use of Alkaline batteries
- 5/8“ tripod adapter
Technical data
| Self-levelling range | ± 3° |
| Levelling accuracy | ± 2 mm / 10 m |
| Working range | 30 m |
| with receiver | 80 m |
| with tracking function | 30 m |
| Centering accuracy Tracking | ± 1 mm / 10 m |
| Power supply | Li-Ion |
| Operating time Laser | 8 h Li-Ion |
| Operating time Tribrach | 15 h Alkaline |
| Protection class | IP 54 |
| Laser diode | 635 nm |
| Laser class | 2 |
| Temperature range | -10° C to +45° C |
