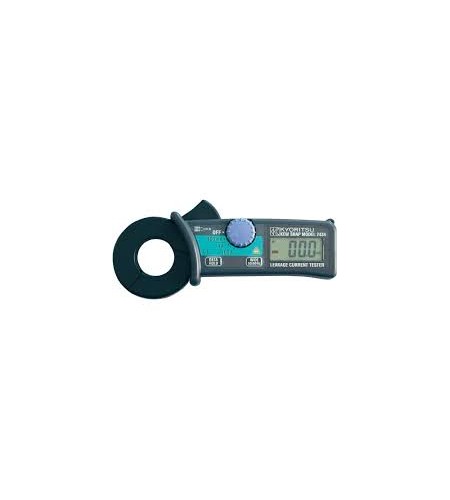

KYORITSU – 2434
Gambar Produk
KYORITSU – 2434
Update Terakhir
09-08-2018
Dilihat Sebanyak
87 kali
Lokasi
DKI Jakarta - Jakarta Pusat - Kemayoran
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi KYORITSU – 2434
Product Description
- Least affected by external stray magnetic field.
- 20mA AC max. in proximity to a 15mm-dia conductor carrying 100A AC
- Frequency Selector Switch to eliminate the effect of harmonics.
Specification
| AC A (50/60Hz) | 400mA/4/100A ±2%rdg±4dgt |
| AC A (WIDE) | 400mA/4/100A |±2%rdg±4dgt [50/60Hz] |±3%rdg±5dgt [40 – 400Hz] |
| Conductor Size | Ø28mm max. |
| Safety Standard | IEC 61010-1 CAT III 300V IEC 61010-2-032 |
| Effect of External Stray Magnetic Field Ø15mm 100A |
20mA AC max. |
| Frequency Response | 40 – 400Hz |
| Withstand Voltage | 3700V AC for 1 minute |
| Power Source | R03 (AAA) (1.5V) × 2 |
| Dimensions | 169(L) × 75(W) × 40(D)mm |
| Weight | 220g approx. |
| Accessories | Carrying Case R03 × 2 Instruction Manual |
| Optional | 8008 (Multi-Tran)* |
