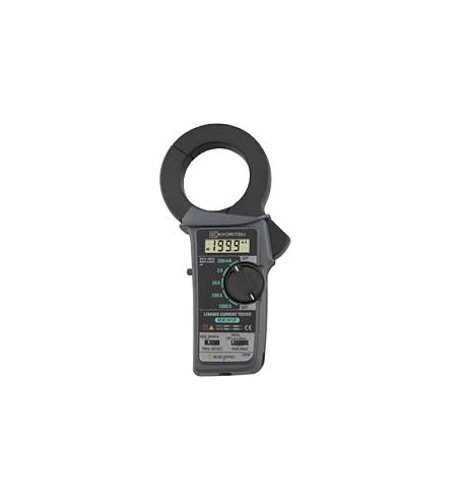

KYORITSU – 2413R
Gambar Produk
KYORITSU – 2413R
Brand
Kyoritsu
Pengiriman
1 Hari Setelah Pembayaran
Lokasi
DKI Jakarta - Jakarta Pusat - Kemayoran
Harga
Kontak Kami
Dilihat Sebanyak
112 kali
Update Terakhir
09-08-2018
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi KYORITSU – 2413R
Product Description
- Large transformer jaws of 68mm diameter makes it possible to clamp on all three or four wires (3 phases) together for leakage current measurement.
- True RMS enables an accurate measurement for distorted waveforms.
- Measurement from mA up to AC 1000A
- Frequency filter switch to eliminate the effect of the harmonics.
- 2 way analogue output terminal:
AC current detected by transformer jaws is converted to AC and DC voltage. Output cord model 7073 (option) is used for monitoring waveform with an oscilloscope or for connecting to a recorder.
Specification
| AC A (50/60Hz) |
200mA/2/20/200/1000A |±2.5%rdg±5dgt (200mA/2/20A) |±3.0%rdg±5dgt (200A, 0 – 500A) |±5.5%rdg (501 – 1000A) |
||||
| AC A (WIDE) |
200mA/2/20/200/1000A |±1.8%rdg±5dgt (50/60Hz) (200mA/2/20A) |±2.0%rdg±5dgt (50/60Hz) (200A, 0 – 500A) |±5.0%rdg (50/60Hz) (501 – 1000A) |
||||
| Conductor Size | Ø68mm max. | ||||
| Frequency Response | 40Hz – 1kHz | ||||
| Output |
|
||||
| Crest Factor | 3.0 or less | ||||
| Withstand Voltage | 3700V AC for 1 minute | ||||
| Applicable Standard | IEC 61010-1 CAT III 300V Pollution degree 2 IEC 61010-2-032 |
||||
| Power Source | 6F22 (9V) × 1 *Continuous measuring time: Approx. 60 hours | ||||
| Dimensions | 250(L) × 130(W) × 50(D)mm | ||||
| Weight | Approx. 570g (including battery) | ||||
| Accessories | 9094 (Carrying Case) 6F22 × 1 Instruction Manual |
||||
| Optional | 7073 (2WAY Output Cord) |
