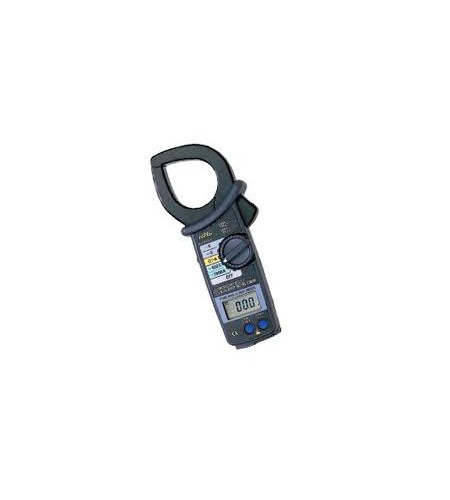

KYORITSU – 2002R
Gambar Produk
KYORITSU – 2002R
Brand
Kyoritsu
Pengiriman
1 Hari Setelah Pembayaran
Lokasi
DKI Jakarta - Jakarta Pusat - Kemayoran
Harga
Kontak Kami
Dilihat Sebanyak
142 kali
Update Terakhir
08-08-2018
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi KYORITSU – 2002R
Product Description
• Can measure large AC current up to 2000A.
• Peak hold function.
• 55mm-dia large tear drop shaped jaws.
Specification
| AC A | 400A (0 – 400A) |±1.5%rdg±3dgt [45 – 65Hz] |±2.5%rdg±3dgt [40Hz – 1kHz] 2000A (0 – 1500A) |±2%rdg±5dgt [45 – 65Hz] |±3%rdg±5dgt [40Hz – 1kHz] 2000A (1501 – 2000A) |±4%rdg [50/60Hz] |
||||||
| AC V | 40/400/750V |±1%rdg±2dgt [45 – 65Hz] |±1.5%rdg±3dgt [40Hz – 1kHz] |
||||||
| DC V | 40/400/1000V ±1%rdg±2dgt | ||||||
| Ω | 400Ω/4k/40k/400kΩ|±1.5%rdg±2dgt | ||||||
| Continuity buzzer | buzzer sounds below 50±35Ω | ||||||
| Output |
|
||||||
| Conductor Size | Ø55mm max. | ||||||
| Safety Standard |
IEC 61010-2-031 |
||||||
| Frequency Response | 40Hz – 1kHz | ||||||
| Withstand Voltage | 5550V AC for 1 minute | ||||||
| Power Source | R6 (AA) (1.5V) × 2 | ||||||
| Dimensions | 247(L) × 105(W) × 49(D)mm | ||||||
| Weight | 470g approx. | ||||||
| Accessories | 7107A (Test leads) 8201 (Output Plug) 9094 (Carrying Case) R6 (AA) × 2 Instruction Manual |
||||||
| Optional | 8008 (Multi-Tran) 7256 (Output cord) |
