KYORITSU – 2056R

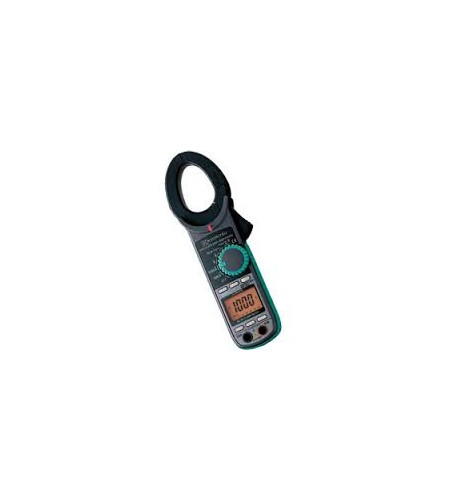

Gambar Produk
KYORITSU – 2056R
Brand
Kyoritsu
Pengiriman
1 Hari Setelah Pembayaran
Lokasi
DKI Jakarta - Jakarta Pusat - Kemayoran
Harga
Kontak Kami
Dilihat Sebanyak
117 kali
Update Terakhir
09-08-2018
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi KYORITSU – 2056R
Product Description
- Designed to meet international safety standard IEC 61010-1 CAT IV 600V.
- CAT IV Clamp Meters can measure the Voltage and Current in both very low and high power circuits.
- Thus, very useful for power distribution companies, power utilities and maintenance fields.
- True RMS enables an accurate measurement.
Specification
| AC A | 0 – 600.0/1000A |±2.0%rdg±5dgt (50/60Hz) |±3.5%rdg±5dgt (40 – 500Hz) |
| DC A | 0 – 600.0/1000A |±1.5%rdg±5dgt |
| AC V | 6/60/600V Auto Ranging |±1.5%rdg±4dgt (50/60Hz) |±3.5%rdg±5dgt (40 – 400Hz) |
| DC V | 600m/6/60/600V Auto Ranging |±1.0%rdg±3dgt |
| Ω | 600/6k/60k/600k/6M/60MΩ (Auto Ranging) |±1%rdg±5dgt (600 – 6M) / ±5%rdg±8dgt (60M) |
| Continuity buzzer | Buzzer Sounds at 100Ω |
| Frequency/DUTY | 10/100/1k/10kHz (Auto Ranging) / 0.1 – 99.9% |
| Temperature | -50ºC – +300ºC (With the use of Temperature probe 8216) |
| Conductor Size | Ø40mm |
| Withstand Voltage | 6880V AC for 5 seconds |
| Safety Standard | IEC 61010-1 CAT IV 600V, IEC 61010-031, IEC 61010-2-032, IEC 61326 |
| Power Source | R03 (1.5V) (AAA) × 2 |
| Dimensions | 254(L) × 82(W) × 36(D)mm |
| Weight | 310g |
| Accessories | 7066A (Test leads) 9094 (Carrying case) Instruction Manual |
| Optional | 8008 (Multi-Tran) 8216 (Temperature probe) |
