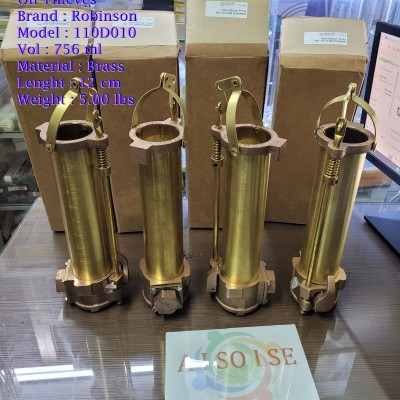

081362449440 Jual Butterfly Valve Oil Thief Robinson 110D010 Vol 756 ml Oil Thief WL Walker

OIL THIEF

Oil Thief Butterfly valve designed thief is made in three models, clear barrel, brass barrel and aluminum barrel. All three models offer the following features: single trip action, full opening with slide valve closure, two adjustable springs, hanger on the top casting for hanging the thief on the tank hatch, adjustable graduated trip rod and hexagon shaped closure spring adjuster head for easier spring adjustment.

A.
- CLEAR BARREL BUTTERFLY  Valve Closure SERIES
    Model                  : 110-D-BI 002
    Size  (Inches  )    : 12
    Capacity (ml/oz ) : 673 / 22
    Weight  (lbs.)       :  4.5

- CLEAR BARREL BUTTERFLY  Valve Closure SERIES
    Model                  : 110-D-BI 003
    Size  (Inches  )    : 16
    Capacity (ml/oz ) : 928 / 31
    Weight  (lbs.)       :  5

- CLEAR BARREL BUTTERFLY  Valve Closure SERIES
    Model                  : 110-D-BI004
    Size  (Inches  )    : 18
    Capacity (ml/oz ) : 1057 / 35
    Weight  (lbs.)       : 5.5





B
- BRASS BARREL BUTTERFLY  Valve Closure SERIES
    Model                  :  110-D-BI010
    Size  (Inches  )    :  12
    Capacity (ml/oz ) :  756/25
    Weight  (lbs.)       :  5

- BRASS BARREL BUTTERFLY  Valve Closure SERIES
    Model                  :  110-D-BI011
    Size  (Inches  )    : 16
    Capacity (ml/oz ) :  1044/34
    Weight  (lbs.)       :  6.5

- BRASS BARREL BUTTERFLY  Valve Closure SERIES
    Model                  :  110-D-BI012
    Size  (Inches  )    :  18
    Capacity (ml/oz ) :  1188/39
    Weight  (lbs.)       :   7




C.
- ALUMINIUM BARREL BUTTERFLY  Valve Closure SERIESS
    Model                  :  110-D-BI014
    Size  (Inches  )    :  12
    Capacity (ml/oz ) :  756/25
    Weight  (lbs.)       :  4.5

- ALUMINIUM BARREL BUTTERFLY  Valve Closure SERIES
    Model                  :  110-D-BI015
    Size  (Inches  )    :  16
    Capacity (ml/oz ) :  1044/34
    Weight  (lbs.)       :  5

- ALUMINIUM BARREL BUTTERFLY  Valve Closure SERIES
    Model                  :  110-D-BI016
    Size  (Inches  )    :  18
    Capacity (ml/oz ) :  1188/39
    Weight  (lbs.)       :  5.25
