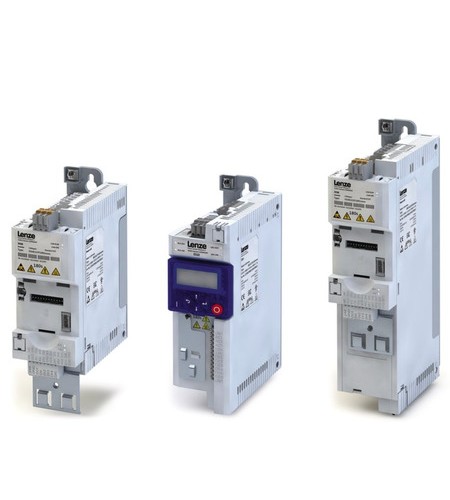

LENZE Inverter i500

Less means more.

i500 is the new inverter series in the 0.25 to 75 kW power range (110 kW in preparation). Its distinguishing features: a streamlined design, scalable functionality and exceptional user-friendliness.

i500 provides a high-quality frequency inverter that already conforms to future standards in accordance with the EN 50598-2 efficiency classes (IE). Overall, this provides a reliable and future-proof drive for a wide range of machine applications.

The i500 frequency inverters are ideal for applications in the pump, fan, conveyor, travelling, winding, shaper, tool and hoist drive sectors.

Highlights:

·         Compact dimensions: snug design, only 60 mm wide and 130 mm deep

·         Performance data:

·         Mains: 1 AC 230 V: 0.25 to 2.2 kW

·         Mains: 1/3 AC 230 V: 0.25 to 5.5 kW

·         Mains: 3 AC 400 V: 0.37 to 75.0 kW

·         Integrated functions:

·         V/f controls (linear, quadratic)

·         Brake energy management

·         Energy-saving function "VFCeco"

·         Modular diagnostics and innovative interaction possibilities over WLAN for new record-beating commissioning times

·         Communication: CANopen, EtherCAT, EtherNET/IP, Modbus, PROFIBUS, PROFINET

·         Approvals: CE, UL, CSA, EAC, RoHS2, IE2 to EN 50598-2

·         Top efficiency class for inverters at IE2 to EN 50598-2

·         Device profile CiA402: operating modes speed and torque control

·         Safety engineering: safe removal of motor torque/Safe Torque Off (STO)
