Product Information and Details Digital Concrete Test Hammer SADT HT 225D Alat Uji Test Beton
Specifications Digital Hammer Test SADT HT 225D
Digital concrete test hammer
Automatic correction of impact direction
Automatic calculating compressive strength
USB transfer

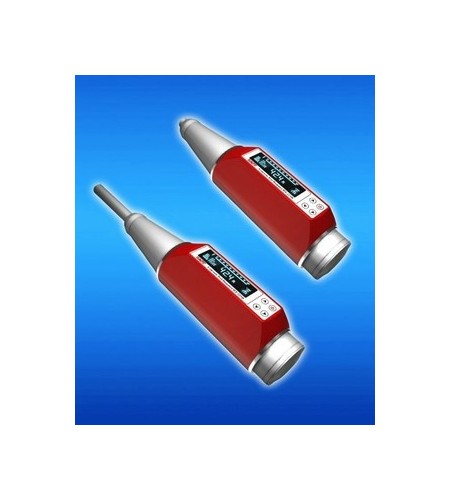

HT-225D is an integrated digital concrete test hammer which combines data processor and test hammer into one unit. It is widely used for non destructive testing quality of concrete and building materials in finished structure or prefabricated blocks. From its rebound value, the compressive strength of concrete can be calculated out automatically. All testing data can be stored in memory and transferred to PC by USB cable or wireless by Blue tooth.
Features:
* High contrast OLED display
* All setup can be made on site
* Automatic calculating compressive strength
* Automatic correction of impact direction
All data will be stored in memory
* All data can be transferred to PC by USB cable or blue tooth( optional)
* Dual display for analogue ruler and digital value
Parameter
Display: OLED digital
Measuring range: 10-70N/ mm2
Impact energy: HT-225D: 0.225kgm ( 2.207Nm) , for testing ordinary building and bridge construction
HT-75D: 0.075kgm ( 0.735Nm) , for testing small and impact-sensitive parts of concrete or artificial brick
HT-20D: 0.020kgm ( 0.196Nm) , for testing mortal or clay of products
Accuracy: ± 0.1R
Communication: USB2.0 or Blue tooth ( optional)
Memory capacity: data for 4000 concrete structures
Operating temperature: -40º ~ 60º C
Power: 3.7V Li-ion rechargeable battery charged via USB port
Dimension: 280x75x60mm
Weight: 1kg
