Jual Hammer Test Proceq DigiSchmidt Type ND/LD
Gambar Produk
Jual Hammer Test Proceq DigiSchmidt Type ND/LD
Update Terakhir
26-05-2017
Dilihat Sebanyak
65 kali
Lokasi
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Jual Hammer Test Proceq DigiSchmidt Type ND/LD

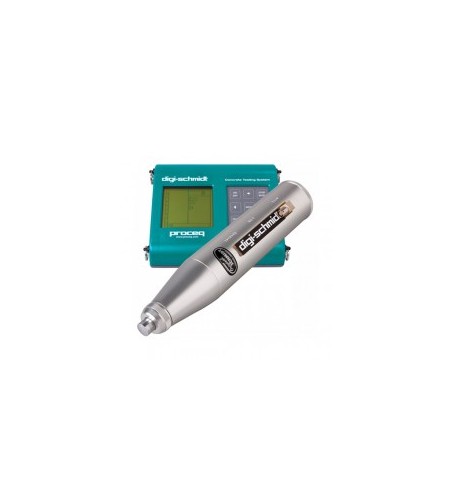

Product Information and Details Hammer Test Proceq DigiSchmidt Type ND/LD Concrete Test Hammer
The Schmidt Hammer Digi-Schmidt was developed for the non destructive measurement of the concrete compressive strength and controlling the uniform concrete quality.
Besides showing the basic settings on the included display unit, the Schmidt Hammer offers the transmission of the measured data to a standard printer or to a PC. This supersedes the time consuming business of note taking allowing the user to focus on the essential. The window based software ProVista allows downloading, presenting and editing of the measured values in a fast and easy way.
The Schmidt Hammer is equipped with a sensor which measures the rebound value of a test impact to high resolution and repeatability. With the Schmidt Hammer, various parameters such as impact direction, form factor and time factors such as carbonation depth can easily be set.
Features
- The Schmidt Hammer offers automatic calculation of the compressive strength
- Storage of customized conversion curves
- Data evaluation and storage as well as transmission to a PC with ProVista software are possible with the Schmidt Hammer
Applications
- Schmidt Hammer Type ND: Suitable for use on concrete components of 100 mm (3.94 in.) thickness or more
- Schmidt Hammer Type LD: Suitable on concrete components of thickness less than 100 mm (3.94 In.) or on cast stone material
- Both versions of the Schmidt Hammer are ideally suited for systematic high volume measuring and the detection of weak spots in the concrete as well as for the control of uniform concrete quality
Technical Data
| Schmidt Hammer Type ND |
Schmidt Hammer Type LD |
|
| Schmidt Hammer | ||
| Impact energy | 2.207 Nm | 0.735 Nm |
| Measuring range Concrete compressive strength |
10 – 70 N/mm2 1’450 – 10’152 psi |
18 – 70 N/mm2 2’610 – 10’152 psi |
| Display Unit | |
| Display | graphic LCD-Display 128 x 128 pixel |
| Internal data storage | non-volatile memory, 250 measurement series of 10 measurements each |
| Communication | RS 232 or with adapter to USB |
| PC application | ProVista |
| Battery type | six LR6 (AA) batteries, 1.5 V for 60 h operation |
| Operating temperature | 0 °C to +60 °C |
| Storage temperature | -10 °C to +60 °C |
