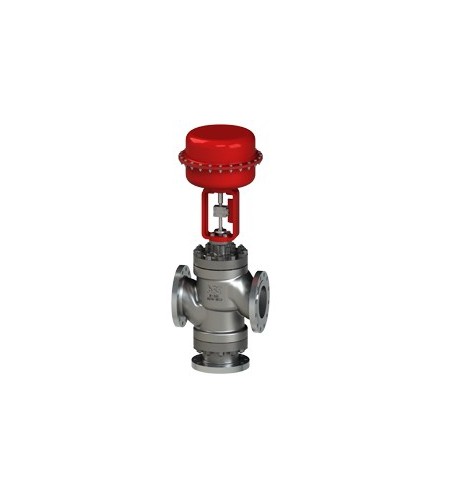

Gambar Produk
Jual 3-Way Valve BFS TD/TM series
Brand
BFS
Lokasi
Jawa Tengah - Batang - Batang
Harga
Kontak Kami
Dilihat Sebanyak
125 kali
Update Terakhir
13-09-2016
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Jual 3-Way Valve BFS TD/TM series
Three-way Diverting & Mixing Service / TD,TM series
TM-series
The mixing type uses a single seated body in combination with a special bottom port assembly with Mixing Service, the three-way valve has two inlet ports and one outlet, and is used to combine two fluids in variable proportions.
TD series
The three-way valve is used to split one inlet stream into two outlets, or the incoming flow can be entirely diverted to or the other of the two outlet ports.
General
- Heavy Guiding : Construction of the TM/TD Series includes top guiding in the plug, as well as guiding within the seat ring locations providing an extermely well supported and stable design.
- High Capacity : Large flow galleries in the TM/TD Series provide high capacity designs with low pressure recoveries. High critical flow factors are attained in both mixing and diverting configurations.
- Flow Stability : The TM/TD Series a dual seated design with flow tending to open the valve at both ports. This provides inherent dynamic stable resulting in excellent throtting control performance.
- Wide Operating Range : Design are available in various sizes and can be configured to operate within an extremely wide temperature range. This is accomplished through use of high performance materials and design configurations.
- NACE Compliance : Construction for Sour Service Application in accordance with NACE standard MR 0103 is readily available. Application requiring compliance to MR 0175, 2003 Rev or ISO 15156 can also be provided.
- Seat Leakage Class : Class II shut-off is standard leakage rating. Class III and IV can be provided depending on application service conditions. Consult with factory on Class III and IV applications and requirements.
- Accessories & Option : Extension Bonnet / Limit Stop / Body Drain Plug / NACE Compliance / Other Materials / Oxygen Cleaning Non-Destructive Examination / Electric Actuator.
3-way Globe Valve
Diverting & Mixing (Conbining)
Bonnet
Plain, Extension, Bellows Seal.
Size
1"(25A) through 26" (65A)
Pressure Rating (ANSI)
150,300,600,900,1500,
Process Connection
FF, RF, RTJ, SW, BW, Others..
Trim Form
Divert, Mixing, Velocity Control Trim (Option)
Application
General Service, Temperature Control
TM-series
The mixing type uses a single seated body in combination with a special bottom port assembly with Mixing Service, the three-way valve has two inlet ports and one outlet, and is used to combine two fluids in variable proportions.
TD series
The three-way valve is used to split one inlet stream into two outlets, or the incoming flow can be entirely diverted to or the other of the two outlet ports.
General
- Heavy Guiding : Construction of the TM/TD Series includes top guiding in the plug, as well as guiding within the seat ring locations providing an extermely well supported and stable design.
- High Capacity : Large flow galleries in the TM/TD Series provide high capacity designs with low pressure recoveries. High critical flow factors are attained in both mixing and diverting configurations.
- Flow Stability : The TM/TD Series a dual seated design with flow tending to open the valve at both ports. This provides inherent dynamic stable resulting in excellent throtting control performance.
- Wide Operating Range : Design are available in various sizes and can be configured to operate within an extremely wide temperature range. This is accomplished through use of high performance materials and design configurations.
- NACE Compliance : Construction for Sour Service Application in accordance with NACE standard MR 0103 is readily available. Application requiring compliance to MR 0175, 2003 Rev or ISO 15156 can also be provided.
- Seat Leakage Class : Class II shut-off is standard leakage rating. Class III and IV can be provided depending on application service conditions. Consult with factory on Class III and IV applications and requirements.
- Accessories & Option : Extension Bonnet / Limit Stop / Body Drain Plug / NACE Compliance / Other Materials / Oxygen Cleaning Non-Destructive Examination / Electric Actuator.
3-way Globe Valve
Diverting & Mixing (Conbining)
Bonnet
Plain, Extension, Bellows Seal.
Size
1"(25A) through 26" (65A)
Pressure Rating (ANSI)
150,300,600,900,1500,
Process Connection
FF, RF, RTJ, SW, BW, Others..
Trim Form
Divert, Mixing, Velocity Control Trim (Option)
Application
General Service, Temperature Control
