Jual Butterfly Valve BFS TR/DR series

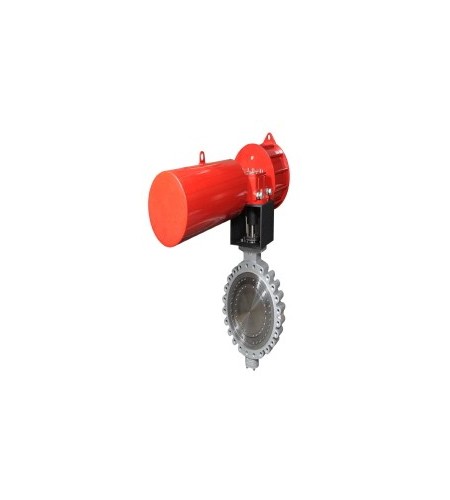

Gambar Produk
Jual Butterfly Valve BFS TR/DR series
Brand
BFS
Lokasi
Jawa Tengah - Batang - Batang
Harga
Kontak Kami
Dilihat Sebanyak
156 kali
Update Terakhir
13-09-2016
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Jual Butterfly Valve BFS TR/DR series
Triple offset Butterfly valve / TR series
TR Series valve utilises the well established unique valve geometry where the stem is offset from the body in two directions. And whilst the disc is a segment taken from a cone where the apex is offset form the center ling of the valve. The disc of the valve houses a field replaceable mental laminate seal whilst the field replaceable seat ring is housed in the body of the valve.
Bidirectional zero leakage is achieved by a unique principle in which the torque generated by the actuating mechanism is allowed to flex the metal seal within it's elastic limits, compressing the seal, thus ensuring that both seal and seat are perfectly matched. This seal resiliency results in zero leakage.
Double offset Butterfly valve / DR series
DR Series are designed to suit those severe conditions such as high temperature and high pressure which do not allow the use of rubber seated valves. High performance butterfly valves provide an economical, light weight, highly controllable process valve.
The design combines the tight shut off of the rubber lined type, and reduced torques and excellent throttling capabilities of the off-set disc assemblies, two types of seats, Meatal or teflon are available for uses in accordance with various applications.
Butterfly Valve
TR / Triple offset Butterfly Valve DR / Double offset Butterfly Valve Bi-Direction for all valve size
Size
3"(80A) through 48" (1200A)
Pressure Rating (ANSI)
150,300,600,900,1500,
Process Connection
Wafer, Wafer-Lugged, Flanged BW, Others..
Trim Form
Triple offset Butterfly , Double offset Butterfly
Application
Standard Severe Service,High Pressure with High Temperature,Cryogenic Service
TR Series valve utilises the well established unique valve geometry where the stem is offset from the body in two directions. And whilst the disc is a segment taken from a cone where the apex is offset form the center ling of the valve. The disc of the valve houses a field replaceable mental laminate seal whilst the field replaceable seat ring is housed in the body of the valve.
Bidirectional zero leakage is achieved by a unique principle in which the torque generated by the actuating mechanism is allowed to flex the metal seal within it's elastic limits, compressing the seal, thus ensuring that both seal and seat are perfectly matched. This seal resiliency results in zero leakage.
Double offset Butterfly valve / DR series
DR Series are designed to suit those severe conditions such as high temperature and high pressure which do not allow the use of rubber seated valves. High performance butterfly valves provide an economical, light weight, highly controllable process valve.
The design combines the tight shut off of the rubber lined type, and reduced torques and excellent throttling capabilities of the off-set disc assemblies, two types of seats, Meatal or teflon are available for uses in accordance with various applications.
Butterfly Valve
TR / Triple offset Butterfly Valve DR / Double offset Butterfly Valve Bi-Direction for all valve size
Size
3"(80A) through 48" (1200A)
Pressure Rating (ANSI)
150,300,600,900,1500,
Process Connection
Wafer, Wafer-Lugged, Flanged BW, Others..
Trim Form
Triple offset Butterfly , Double offset Butterfly
Application
Standard Severe Service,High Pressure with High Temperature,Cryogenic Service
