Spesifikasi Jual Ecentric & V-Notch Valve BFS ER/VR series

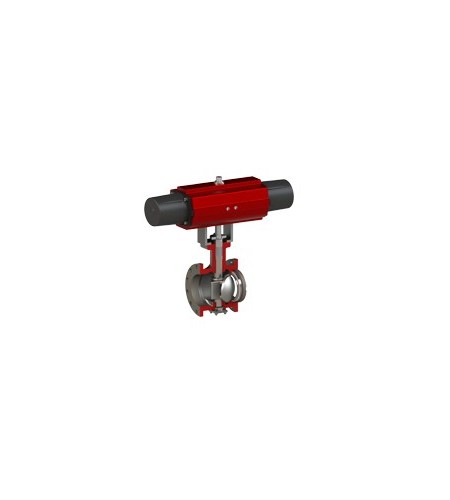

Eccentric Rotating Plug Valve / ER series
The ER's series is a heavy-duty automatic throttling control valve which incorporates into it's design the following
- Heavy-duty guide lugs assure quick positive alignment during installation.
- Large capacity ; Because of stream lined body no bottleneck inside, ER's has a large capacity approximately same as conventional butterfly valve.
- ER's operated very smoothly even at alow opening because of the unique eccentrically rotating mechanism so that control capability is widened remarkably through wide range of flow road.
- ER's has good dynamic stability due to the unique plug design and cross.
- Sectional view of body which are developed under the long time hydrodynamic investigation.
- Flange of Flangeless type connection.
V-Notch Rotating Plug Valve / VR series
The VR-series is a combines globe valve. A shearing action between the V-notch plug and the plug seal promotes smooth, non-clogging operation. The straight-through flow design provides high capacity for gas, steam, liquids, and fibers slurries. The design VR mate with a variety of ANSI raised face flanges, as well as with DIN & KS(JIS) flanges.
- One piece body ; Body design is robust and the body is not operationally affected by pipeline forces, flange gasket contact surfaces are continuous to accept all type of standard flange gasket, one-piece body avoids body leak paths.
- High rangeability : VR's have a rangeability of 150:1(standard) which ensures controllability of high turn down processes, high rangeability compensates for changes in process conditions.
- Low torque requirement : As opposed to many constructions, VR's are trunnion mounted with both shafts supported by low friction bearings.
- Excellent tightness with metal seats : VR's are metal seated and feature bidirectional tightness, in flow direction tightness is better than 0.0000002 x rates Cv value.
ER/Eccentric Rotary Plug Valve
VR/V-Notch Rotary Valve
Size
3/4""(20A) through 16" (400A)
Pressure Rating (ANSI)
150,300,600,
Process Connection
Wafer, RF, RTJ, Others..
Trim Form
ER/Eccentric Rotary Plug, VR/Concentric V-notch rotary plug
Application
Eccentric- General Service, V-notch- High Rangeability valve, - Slurry fluid service application, - Pulp & paper
The ER's series is a heavy-duty automatic throttling control valve which incorporates into it's design the following
- Heavy-duty guide lugs assure quick positive alignment during installation.
- Large capacity ; Because of stream lined body no bottleneck inside, ER's has a large capacity approximately same as conventional butterfly valve.
- ER's operated very smoothly even at alow opening because of the unique eccentrically rotating mechanism so that control capability is widened remarkably through wide range of flow road.
- ER's has good dynamic stability due to the unique plug design and cross.
- Sectional view of body which are developed under the long time hydrodynamic investigation.
- Flange of Flangeless type connection.
V-Notch Rotating Plug Valve / VR series
The VR-series is a combines globe valve. A shearing action between the V-notch plug and the plug seal promotes smooth, non-clogging operation. The straight-through flow design provides high capacity for gas, steam, liquids, and fibers slurries. The design VR mate with a variety of ANSI raised face flanges, as well as with DIN & KS(JIS) flanges.
- One piece body ; Body design is robust and the body is not operationally affected by pipeline forces, flange gasket contact surfaces are continuous to accept all type of standard flange gasket, one-piece body avoids body leak paths.
- High rangeability : VR's have a rangeability of 150:1(standard) which ensures controllability of high turn down processes, high rangeability compensates for changes in process conditions.
- Low torque requirement : As opposed to many constructions, VR's are trunnion mounted with both shafts supported by low friction bearings.
- Excellent tightness with metal seats : VR's are metal seated and feature bidirectional tightness, in flow direction tightness is better than 0.0000002 x rates Cv value.
ER/Eccentric Rotary Plug Valve
VR/V-Notch Rotary Valve
Size
3/4""(20A) through 16" (400A)
Pressure Rating (ANSI)
150,300,600,
Process Connection
Wafer, RF, RTJ, Others..
Trim Form
ER/Eccentric Rotary Plug, VR/Concentric V-notch rotary plug
Application
Eccentric- General Service, V-notch- High Rangeability valve, - Slurry fluid service application, - Pulp & paper
