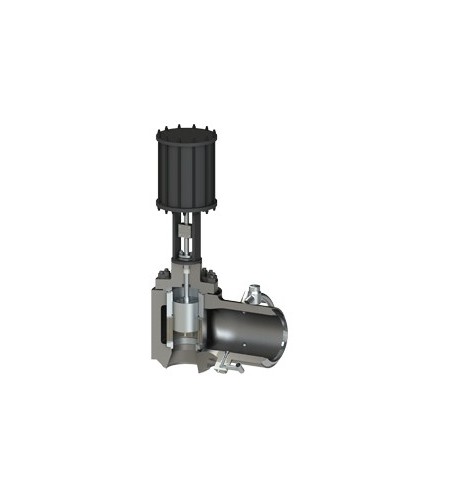

Jual Bypass Valve BFS TBLP series
Brand
BFS
Lokasi
Jawa Tengah - Batang - Batang
Harga
Kontak Kami
Dilihat Sebanyak
115 kali
Update Terakhir
13-09-2016
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Jual Bypass Valve BFS TBLP series
LP Bypass Valve - Cage Guided Balanced Trim, Dump Tube(Option)
The LP-TB valve uses multi-hole cage technology to provide system noise attenuation through frequency shifting is a proven method of noise attenuation recognized by ISA Technical Standard SP 75.07 and by the IEC in Technical Standard 544-8-3.
In frequency shifting the main flow stream is a separated into hundreds of tiny jets. The size of jets, which are primarily based on hole size, determine the resulting noise frequency-the smaller the size of the jet or multi-hole, the higher the frequency, which in turn produces a lower turns mitted dBA level. Multi-hole cage technology is ideally suited for intermediate pressure combined-cycle and low pressure drum boiler turbine bypass applications.
Unlike traditional multi-hole cage on the market today, the multi-hole trim uses over one thousand multi-holes spaced a part in a special pattern designed to ensure fill jet separation, structural intergrity, and maximum noise attenuation.
LP Bypass Valve
Cage Guided Balanced Trim, Dump Tube(Option)
Size
(in x out) 8" to 24" x 8" to 30"
Pressure Rating (ANSI)
600,900,1500,
Process Connection
RF, RTJ, SW, BW, Others..
Trim Form
Conventional Cage, MH1S, MH2S,MHMS, X[iks]-trim
Application
LP Turbine bypass Valve
The LP-TB valve uses multi-hole cage technology to provide system noise attenuation through frequency shifting is a proven method of noise attenuation recognized by ISA Technical Standard SP 75.07 and by the IEC in Technical Standard 544-8-3.
In frequency shifting the main flow stream is a separated into hundreds of tiny jets. The size of jets, which are primarily based on hole size, determine the resulting noise frequency-the smaller the size of the jet or multi-hole, the higher the frequency, which in turn produces a lower turns mitted dBA level. Multi-hole cage technology is ideally suited for intermediate pressure combined-cycle and low pressure drum boiler turbine bypass applications.
Unlike traditional multi-hole cage on the market today, the multi-hole trim uses over one thousand multi-holes spaced a part in a special pattern designed to ensure fill jet separation, structural intergrity, and maximum noise attenuation.
LP Bypass Valve
Cage Guided Balanced Trim, Dump Tube(Option)
Size
(in x out) 8" to 24" x 8" to 30"
Pressure Rating (ANSI)
600,900,1500,
Process Connection
RF, RTJ, SW, BW, Others..
Trim Form
Conventional Cage, MH1S, MH2S,MHMS, X[iks]-trim
Application
LP Turbine bypass Valve
