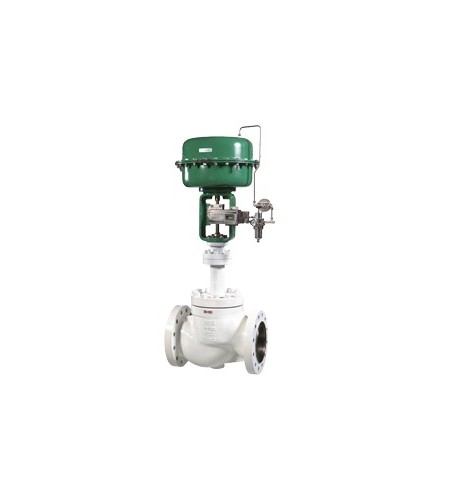

Jual Globe Valve BFS CG series
Brand
BFS
Lokasi
Jawa Tengah - Batang - Batang
Harga
Kontak Kami
Dilihat Sebanyak
156 kali
Update Terakhir
09-09-2016
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Jual Globe Valve BFS CG series
Cage Guided Balanced Valve / CG series
C-Series valves are supplied with either direct or reverse acting actuators plug a number of optional accessories to satisfy most final control element requirements.
Our C-Series valves also permits interchangeability of actuators and trim types within certain valve sizes for simplifying control changes in the field. This feature combined with a wide selection of standard and optional trim assemblies provides optimum control and has proven to be economical should field conversion be necessary.
Globe
Cage Guided Balanced Trim
Bonnet
Plain, Extension, Bellows SEal
Size
2"(50A) through 26"(650A) Over 26"(Option)
Pressure Rating (ANSI)
150,300,600,900,1500,2500,4500
Process Connection
FF,RF,RTJ,SW,BW,Others..
Trim Form
Conventional Cage, MH1S, MH2S, MHMS, Multi-step, X[iks]-trim
Application
Standard Severe Service, Crygenic Service
C-Series valves are supplied with either direct or reverse acting actuators plug a number of optional accessories to satisfy most final control element requirements.
Our C-Series valves also permits interchangeability of actuators and trim types within certain valve sizes for simplifying control changes in the field. This feature combined with a wide selection of standard and optional trim assemblies provides optimum control and has proven to be economical should field conversion be necessary.
CGC2G2 / Cage Globe
| Construction | Cage Globe Valve |
| Trim Form | Conventional Balanced Cage Type |
| Size | 2" to 26" [Option over 26"] |
| Rating | Class 150# to 4500# |
| Characteristic | Linear, EQ%, Mod-% |
| Seat Leakage | FCI 70-2 Class IV.V.VI |
| Typical Application | General Service Lower diff.P with Large Capacity |
CGM1G2 / Multi Hole 1-stage Globe
| Construction | Cage Globe Valve |
| Trim Form | Multi-Hole 1-stage Balanced Cage Type |
| Size | 2" to 26" [Option over 26"] |
| Rating | Class 150# to 4500# |
| Characteristic | Linear, EQ%, Mod-% |
| Seat Leakage | FCI 70-2 Class IV.V.VI |
| Typical Application | Fuel oil or fuel gas pressure control valve Middle/Low pressure steam control valve |
CGM2G2 / Multi Hole 2-stage Globe
| Construction | Cage Globe Valve |
| Trim Form | Multi-Hole 2-stage Balanced Cage Type |
| Size | 2" to 26" [Option over 26"] |
| Rating | Class 150# to 4500# |
| Characteristic | Linear, EQ%, Mod-% |
| Seat Leakage | FCI 70-2 Class IV.V.VI |
| Typical Application | Deaerator Level control valve Medium/Low pressure steam control valve |
CGM3G2 / Multi Hole 3-stage Globe
| Construction | Cage Globe Valve |
| Trim Form | Multi-Hole 3-stage Balanced Cage Type |
| Size | 8" to 26" [Option over 26"] |
| Rating | Class 300# to 600# |
| Characteristic | Mod-% |
| Seat Leakage | FCI 70-2 Class V |
| Typical Application | Auxiliary steam pressure control valve Soot blower steam & Gland steam pressure control valve |
Globe
Cage Guided Balanced Trim
Bonnet
Plain, Extension, Bellows SEal
Size
2"(50A) through 26"(650A) Over 26"(Option)
Pressure Rating (ANSI)
150,300,600,900,1500,2500,4500
Process Connection
FF,RF,RTJ,SW,BW,Others..
Trim Form
Conventional Cage, MH1S, MH2S, MHMS, Multi-step, X[iks]-trim
Application
Standard Severe Service, Crygenic Service
