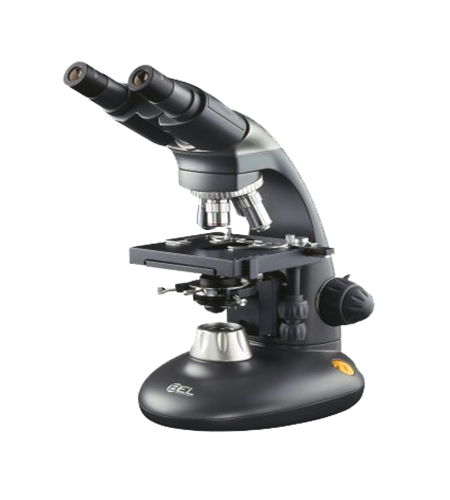

Microscope Binocular, Alat Laboratorium

▪ Application  : Laboratory and Education

▪ Optical System  : Standard DIN 160mm system

▪ Illumination  : Built in transmitted Koehler illumination with field diaphragm 6V 30W Halogen bulb

▪ Eyepieces  : Wide field WF10x/18mm

▪ Objectives  : AC  ACHROMATIC 4x/0.1; 10x/0.25; 40x/0.65; 100x/1.25 (oil immersion); PL ACHROMATIC 4x/0.1; 10x/0.25; 40x/0.65; 100x/1.25 (oil immersion)

▪ Focusing  : Macrometric and micrometric coaxial knobs on both sides (0,002mm)

▪ Observation tube  : Binocular; Tube inclination 30° tilted, 360° rotable; Interpupillary distance adjustment 55-75mm

▪ Stage  : 135 x 125mm. Excrution XY: 75X35mm (division 0,1mm); Coaxial knobs on right side

▪ Condenser  : Abbe condenser, N.A 1.25. Equipped with diaphram and filter seat. Height and centering are adjustable

▪ Accessories  : Protection Cover; Oil Bottle; Certificate of origin for Chamber of Commerce; Manual Book
