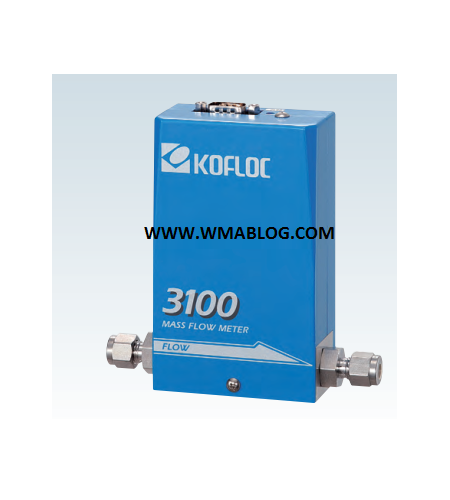

Mass Flow Meter 3100 Kofloc High-grade
Gambar Produk
Mass Flow Meter 3100 Kofloc High-grade
Update Terakhir
04-12-2017
Minimum Pembelian
1 unit
Dilihat Sebanyak
112 kali
Lokasi
Jawa Barat - Bekasi
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Mass Flow Meter 3100 Kofloc High-grade
High-grade Mass Flow Meter
MODEL 3100 SERIES
The Model 3100 Series Mass Flow Meter is a new, ad-vanced high-precision flowmeter developed based on the Model 3200 Series. The incorporated innovative capillary type flow sensor reduces pressure loss and ensures high response as well as ensuring stability.
Features
- Equipped with a temperature follow-up type current difference detection flow sensor to ensure high accuracy and quick response.
- Measurements of minute flows available up to 1 SCCM full scale (SR option).
Standard Spesifications
|
Flow range (at N2 calibration conditions) |
10SCCM-20SLM |
|
Response |
1 sec. or less to within ±2% of full scale of |
|
Accuracy |
Within ±1.0% F.S./3100 |
|
Linearity |
Within ±0.5% F.S. |
|
Repeatability |
Within ±0.2% F.S. |
|
Proof pressure |
980kPa |
|
Leak rate |
1x10-8 Pa·m3/s or less (excluding transmission of He) |
|
Working temperature range |
0-50℃ (Accuracy guarantee: 15-35℃) |
|
Materials of parts exposed to gases |
Body: SUS 316L, SUS 316, PTFE |
|
Joint |
Standard: 1/4SWL® |
|
Optional: 1/8SWL® 1/4VCR® RC1/4®, etc. |
|
|
Electrical connections |
Dsub 9-pin male connector per KFC standard |
|
Flow rate output signals |
0-5VDC |
|
Required power supply* |
+15VDC (±5%) 100mA, –15VDC (±5%) 100mA |
