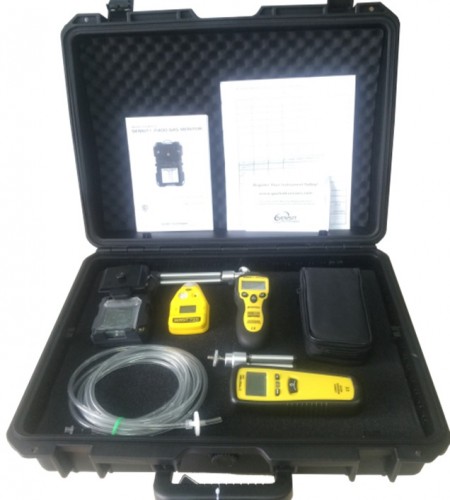

Complete Multigas Detector, Jual Alat Deteksi Kebocoran Gas

Fungsi   : Alat Deteksi gas di area kerja

Parameters  yang diukur  Range

â–ª LEL (Low Explosive Limit)                : 0-100 ppm

â–ª O2 (Oxygen)                                       : 25% vol

â–ª CO (Carbon Monoxide)                    : 0-999 ppm

â–ª SO2 (Sulfur Dioxide)                        : 0-20 ppm

â–ª H2S (Hydrogen Sulfide)                   : 0-100 ppm

â–ª CO2 (Carbon Dioxide)                     : 0.00-5.00% vol

â–ª NO2 (Nitrogen Dioxide)                    : 0-100 ppm

â–ª O3 (Ozone)                                       : 0-100 ppm

â–ª NH3 (Ammonia)                               : 0-100 ppm

â–ª HCHO (Formaldehyde)                    : 0.0-5.0 ppm

â–ª VOC (Volatic Organic Compound)  : 0-50 ppm

Spesifikasi alat :

a. Multigas 5 parameter

â–ª Parameters        : LEL, O2, CO, H2S and SO2

â–ª Size / weight       : 13.2 x 8.1 x 4.0 cm / 340 gr

â–ª Temp. operating : (-20 to 50° C)

â–ª Humidity               : 10 - 90% RH (Non-condensing)

â–ª Power Source      : 4 “AA” Alkaline or NiMH Recharger Pack (charge with NiMH Battery Pack)

â–ª Battery Life           : 24 Hr. Alkaline or 15 Hr. NiMH

â–ª Sound                   : 98db @ 15” (30cm)

â–ª Approval
 - UL 7WA6
 - For Class 1, Division 1, Groups A, B, C and D Hazardous locations
 - when used with approved alkaline batteries or rechargeable
 - battery pack. IP65
 - Temp code: T4, -20° C to 50° C
 - CЄ 0891 Єx II 2 G
 - Ex d ia IIC T4, Gb, IP65
 - -20° C to 50° C
 - DEMKO

b. CO2 and NO2 Detection

 â–ª Resolution   : CO2: 1ppm

                           : NO2: 0.1ppm

â–ª Sensor  : Infrared and Electrochemical Sensor

â–ª Alarm  : Audible--buzzer with ≥75dB audible, Visible--flashing red LED, ≥20m visible

â–ª Display  : Liquid Crystal Display(LCD)

â–ª Response time  : CO2: ≤50S ( T90 )

                                   NO2: ≤45s (T90)

â–ª Size/weight  : 130*66*30mm, 500g

c. Ozone Meter

â–ª Resolution  : 0.02ppm, 0.03ppm

â–ª Sensor  : Membrapor/CITY Electrochemical Sensor

â–ª Response time   : ≤45s(T90)

â–ª Alarms   : Audible--buzzer with ≥75dB audible

     Visible--flashing red LED, ≥20m visible

â–ª Display  : Liquid crystal display (LCD)

â–ª Size/weight  : 105*54*32mm/450g

INFORMASI ORDER :

Yoshua S  :  +62-812-19523022  Mail : juliusyosuasiahaan@outlook.com
