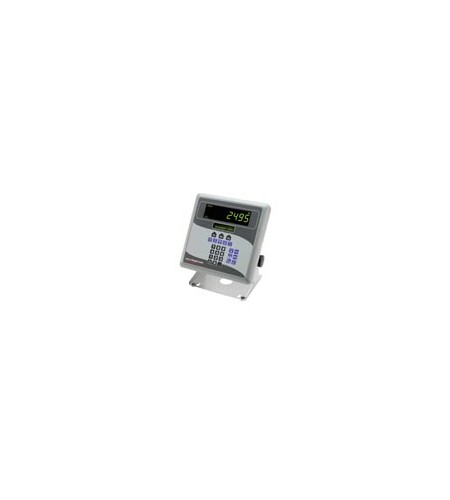

INDIKATOR AVERY E1105 | INDICATOR AVERY E1105

Features

• Multi-function indicator, suitable for more complex industrial weighing applications
• Wide range of Serial, Ethernet and optional FieldBus interfaces allows simple, low cost connection to operating networks and peripheral devices
• Weighing, counting, checkweighing, recipe/filling (10 recipes/10 steps), totalising, peak hold, remote display, in-motion weighing, simple weighbridge operations and single level pack runs applications as standard
• Numeric keypad with 3 function keys and 100 numeric PLUs for easy operation of most popular applications
• Up to 8 fully flexible inputs and outputs – can replace a PLC for a simpler, more reliable system

Specifications

• 25mm high LED display, with graphical checkweighing indication and operator prompts
• Up to 3 serial interfaces, selectable for RS232, RS485, RS422 or 4-20mA Current Loop, Ethernet TCP/IP as standard, plus optional DeviceNet, ModBus TCP, ProfiBus DP, Ethernet IP and ControlNet
• Connects to a wide range of analogue load cells – maximum 16 load cells with optional second scale support
• Optional electronic archiving
• IP54 rated, dust resistant plastic case, suitable for desk, wall or pole mounting
