Jual Total Station Hi-Target ZTS 120/ 120R
Perhatian!
Spesifikasi Jual Total Station Hi-Target ZTS 120/ 120R

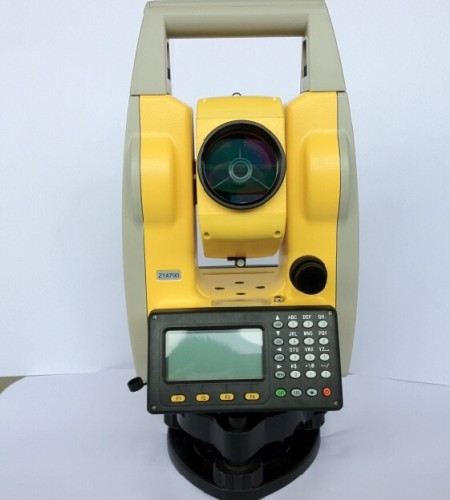

Total Station Hi-Target ZTS 120/ 120R
Total Station Hi-Target ZTS 120/ 120R Product Information and Details
Product description :
Model ZTS-120/ 120R
Angle Measurement( Hz, V)
Measurement Method Absolute Code
Minimum Readout 13
Angle Measuring Accuracy 23
Telescope
Magnification 30X
Field of View 1° 302
Minimum Focus Distance 1.5m
Reticle Illuminated
Compensator
System Single-axis liquid-electric tilt sensor Compensator
Working Range ± 32
Setting Accuracy 13
Distance measurement Reflector ( IR)
Range Single Prism( Atmosphere general / good ) 2000m/ 2500m
Reflector( 60mmx60mm) 800m
Accuracy( Fine/ Coarse/ Tracking) 2mm± 2ppm
Measurement Time Repeat 1s
Tracking 0.6s
Reflector-less ( RL)
Range White Target board 350m
Single Prism ? 7500m
Accuracy( short distance/ tracking/ prism) 3mm± 2ppm
Measurement Time( short distance/ tracking/ prism) 2s
General
Communication Internal Data Memory 20000 Points
Interface Standard RS232 port ( USB port / Bluetooth optional )
Data Format ASCII( DXF/ GSI optional )
Operation System Real-time English operating system
Display Graphics: 192* 96 pixels , 6 line* 12 characters
Keyboard Alpha-numerical keyboard
Laser Plummet Type Laser Point, Brightness Adjustable in steps
Centering Accuracy 1 mm at 1.5m instrument height
Power Supply Battery Type Lithium-Ion
Voltage/ Capacity ZBA-400: 7.4V 3000mAh
Operating Time with ZBA-400 16 hours
24hous( Continuous Angle Measurement )
Weight ( Incl. Battery & Tribrach) 5.5kg
Environmental Operating Temperature -20? ~ ? 50?
Storage Temperature -40? ~ ? 70?
Dust & Water Proof ( IEC60529) IP54
istanalaser
supplier Digital Instruments, Alat alat Survey, Geologi, Alat ukur, GPS Devices & Radio Communication seperti GPS Trimble, Digital Theodolite, Total Station, Waterpass, Automatic Level, GPS Magellan Triton, GPS Magellan Explorist, GPS Garmin, GPS Mio, GPS Geodetik, GPS Magellan Exsplorist, GPS Furuno, Kompas Suunto, Kompas Brunton, Clinometer, Altimeter, GPS Spectra, Kompas Geologi, Laser Meter / Leica Distometer, Binoculars / Teropong, Planimeter, Measuring Tape, Leveling Laser, Palu Geologi Estwing, Loupe Rouper, Sunlite E1, Hammer Test, Handy Talky, Radio RIG, Telephone Satellite, Repeater, Perahu Karet / Rubber Boat, Lux Meter, PH Meter, Hammer Test, Rain Gauge, Weather Station, Anemometer, Sound Level Meter, Measuring Instruments, Nikon Forestry, Telpon Satelit, Chlorine Meter, Current Meter, DO Meter, Flaw Detector, Angle Meter Tajima Slant 100, CST Berger, Abney level, Aluminium Tripod, Prisma Polygon, Prisma Detail, Single Pisma, Range Pole, Rambu Ukur, Laser Line, AX Brain, Rotating Laser, Laser Agatec, dll
Dengan bermacam macam merk terkenal seperti :
* Total Station | Digital Theodolite | Automatic Level
Topcon, Nikon, Sokkia, Pentax, South, Leica, Sincon, Neolaser, Mysurv, CST Berger, Kolida, Minds
* GPS ( Global Positioning System )
Garmin, Trimble, Topcon, South, Spectra, Magellan
* Laser Meter / Meteran Laser
Neolaser, Line, Leica, Precaster, Bosch, Agatec, Robotoolz
* Kompas | Clinometer | Altimeter
Suunto, Brunton, Silva, Freiberg
* Teropong / Binoculars
Steiner, Hunter, Nikon, Bushnell, Celestron.
* HT / Handie Talkie | Radio Repeater
Motorola, Icom, Yaesu, Alinco, Suicom, Kenwood, SMP, Weierwei, Firscom
* Lainnya
Inmarsat, Ericson, Isatpone, Aces, Estwing, Lutron, Eutech, Mastech, Tajima Slant, dll.
METODE PEMBAYARAN :
Pembayaran dapat dilakukan dengan cara Cash On Delivery / Transfer Bank.
* C.O.D. ( Cash On Delivery / Bayar ditempat)
Khusus nuntuk wilayah Jakarta kami melayani pemesanan dengan cara pembayaran di tempat anda, Prosesnya :
1. Pesanan anda kami antar ke tempat anda
2. Setelah anda terima silahkan cek kelengkapan dan kualitas barang
3. Bila sudah ' OK' dan tidak ada masalah baru dibayar
Pembayaran ditempat bisa dalam bentuk tunai ataupun Transfer .
Transfer Bank
Pembayaran dapat dilakukan dengan Transfer Bank, baik melalui ATM, Setoran Tunai, Internet banking atau mobile banking. Berikut ini informasi Account bank yang kami gunakan:
BANK BCA
No.Rekening : 321 039 2997
Atas Nama : Rian Hadianto
BANK MANDIRI
No.rekening : 131 00100 58958
Atas Nama : Rian Hadianto
BANK BNI
No.rekening : 0333-6699-61
Atas Nama : Rian Hadianto
BANK BRI
No.rekening : 0100-01-062531-50-4
Atas Nama : Rian Hadianto
Untuk info dan harga terbaik, silahkan hubungi :
Mr.Rifky Faisal Bahri
Phone : 085353410506 / 089618877628 / 082216069899
Email : rifkifaisal93@ gmail.com / rifky.gps93@ gmail.com
