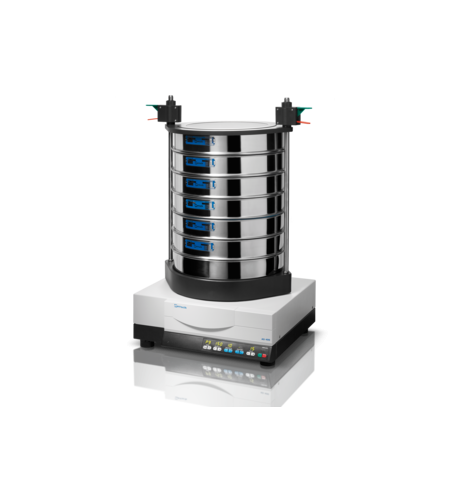

RETSCH Horizontal Sieve Shaker AS 400 control
Perhatian!
Spesifikasi RETSCH Horizontal Sieve Shaker AS 400 control
Product Advantages
- sieving with circular sieving motion according to DIN 53477
- excellent separation efficiency even with short sieving times
- sieve stack up to 450 mm height
- free digital adjustment of all process parameters (time, speed or sieve acceleration, interval)
- memory for up to 9 SOPs
- interval operation
- optional software EasySieve for control through RS232 serial interface, easy evaluation and documentation of results
- fulfils all criteria for measuring equipment related to ISO 9001
- maintenance-free
- easy operation, ergonomic design
Features
| Applications | separation, fractioning, particle size determination |
| Field of application | agriculture, biology, chemistry / plastics, construction materials, engineering / electronics, environment / recycling, food, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals |
| Feed material | powders, bulk materials |
| Measuring range* | 45 µm - 63 mm |
| Sieving motion | horizontal circular motion |
| Max. batch / feed capacity | 5 kg |
| Max. number of fractions | 7 / 9 / 17 |
| Max. mass of sieve stack | 15 kg |
| Speed | digital, 50 - 300 min-1 |
| Time display | digital, 1 - 99 min |
| Interval operation | 1 - 10 min |
| Storable SOPs | 9 |
| Suitable for dry sieving | yes |
| Suitable for wet sieving | - |
| Serial interface | yes |
| Including test certificate / can be calibrated | yes |
| Suitable sieve diameters | 100 mm / 150 mm / 200 mm / 203 mm (8") / 305 mm / 315 mm / 400 mm |
| Max. height of sieve stack | 450 mm |
| Clamping devices | "standard", "comfort", each for dry sieving |
| Protection code | IP 54 / IP 20 |
| Electrical supply data | 100-240 V, 50/60 Hz |
| Power connection | 1-phase |
| W x H x D | 540 x 260 x 507 mm |
| Net weight | ~ 70 kg |
| Documentation | Operation & Application Video |
| Standards | CE |
