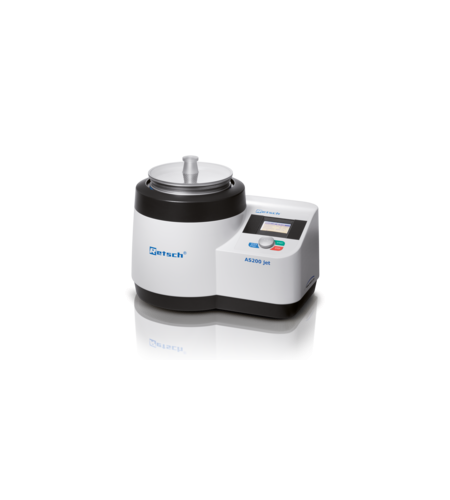

RETSCH Air Jet Sieving Machine AS 200 jet
Perhatian!
Spesifikasi RETSCH Air Jet Sieving Machine AS 200 jet
Product Advantages
- sieving with air jet technology for dispersion and desagglomeration of fine powders
- Open Mesh Function to reduce the number of near-mesh particles
- high flexibility through adjustable nozzle speed
- operation with standard Retsch sieves, 203 mm (8")Ø or 200 mm Ø (with adapter), 1" or 2" high
- free manual (standard) or automatic (accessory) pressure regulation
- optional software EasySieve for control through RS232 serial interface, easy evaluation and documentation of results
- free digital adjustment of all process parameters (time, vacuum, speed)
- additional Quick Start mode
- silent operation due to integrated silencer
- collection of two fractions possible by use of cyclone
- air jet produced by a powerful industrial vacuum cleaner
- fulfils all criteria for measuring equipment related to ISO 9001
- easy operation, ergonomic design
- maintenance-free
- memory for up to 9 SOPs
Features
| Applications | separation, fractioning, particle size determination |
| Field of application | chemistry / plastics, construction materials, environment / recycling, food, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals |
| Feed material | powders |
| Measuring range* | 10 µm - ~ 4 mm |
| Sieving motion | dispersion by air jet |
| Max. batch / feed capacity | 0.3 - 100 g |
| Max. number of fractions | 1 (by using a cyclone: 2) |
| Speed | digital, 5 - 55 min-1 (nozzle) |
| Time display | digital, 00:01 - 99:59 min |
| Interval operation | - |
| Vacuum | 2,000 - 9,999 Pa / 20 - 99 mbar / 0.3 1.45 psi |
| Storable SOPs | 9 / Quick Start mode |
| Suitable for dry sieving | yes |
| Suitable for wet sieving | - |
| Serial interface | yes |
| Including test certificate / can be calibrated | yes |
| Suitable sieve diameters | 203 mm (200 mm with adapter) |
| Max. height of sieve stack | 1 sieve (25 mm (1") / 50 mm ( 2")) |
| Accessories | cyclone / automatic vacuum regulation |
| Electrical supply data | 100-240 V, 50/60 Hz |
| Power connection | 1-phase |
| W x H x D | 460 x 288 x 305 (without cover) |
| Net weight | ~ 14 kg |
| Standards | CE |
