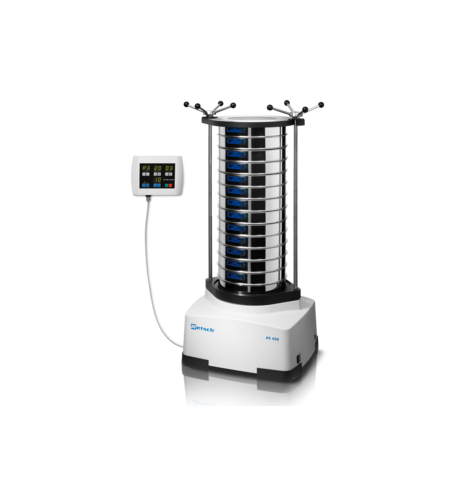

RETSCH Vibratory Sieve Shaker AS 450 control
Perhatian!
Spesifikasi RETSCH Vibratory Sieve Shaker AS 450 control
Product Advantages
- suitable for dry and wet sieving
- excellent separation efficiency even with short sieving times
- efficient electromagnetic drive
- 3-D throwing motion which ensures optimum use of the open sieve area and lets the sample move equally over the whole sieving surface
- CET Technology for controlled amplitude even with high loads (up to 25 kg)
- up to 14 fractions in one sieving operation
- free digital adjustment of all process parameters (time, amplitude or sieve acceleration, interval)
- memory for up to 9 SOPs
- mobile operation panel for comfortable handling
- optional software EasySieve for control through RS232 serial interface, easy evaluation and documentation of results
- fulfils all criteria for measuring equipment related to ISO 9001
- maintenance-free
- easy operation (clamping), ergonomic design
- Dry and wet sieving in one model
Features
| Applications | separation, fractioning, particle size determination |
| Field of application | chemistry / plastics, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics |
| Feed material | powders, bulk materials, suspensions |
| Measuring range* | 25 µm - 125 mm |
| Sieving motion | throwing motion with angular momentum - 3D movement |
| Max. batch / feed capacity | 25 kg |
| Max. number of fractions | 13 / 9 (min. 3) |
| Max. mass of sieve stack | 50 kg |
| Amplitude | digital, 0.2 - > 2.2 mm |
| Sieve acceleration | 1 -> 11 g |
| Time display | digital, 1 - 99 min |
| Interval operation | 10 - 99 s |
| Storable SOPs | 9 |
| Suitable for dry sieving | yes |
| Suitable for wet sieving | yes |
| Serial interface | yes |
| Suitable sieve diameters | 400 mm / 450 mm |
| Max. height of sieve stack | 963 mm |
| Clamping devices | "standard", "comfort", each for wet and dry sieving |
| Electrical supply data | different voltages |
| Power connection | 1-phase |
| W x H x D | 714 x 435 x 658 mm |
| Net weight | ~ 200 kg |
| Documentation | Operation & Application Video |
| Standards | CE |
