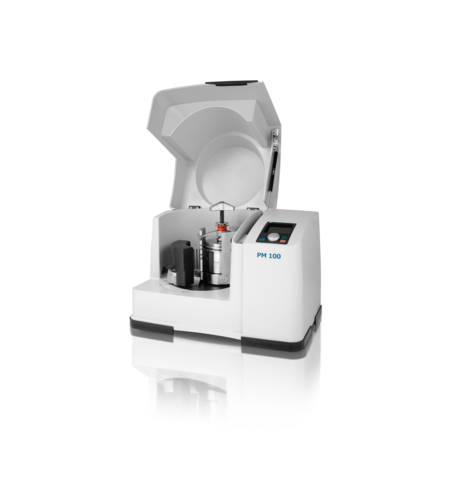

RETSCH Planetary Ball Mill PM 100
Gambar Produk
RETSCH Planetary Ball Mill PM 100
Brand
RETSCH
Pengiriman
3 Hari Setelah Pembayaran
Lokasi
Jawa Barat - Bekasi
Harga
Kontak Kami
Dilihat Sebanyak
148 kali
Update Terakhir
30-06-2016
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi RETSCH Planetary Ball Mill PM 100
Product Advantages
- powerful and quick grinding down to nano range
- reproducible results due to energy and speed control
- suitable for long-term trials
- 2 different grinding modes (dry and wet)
- optional pressure and temperature measuring system PM GrindControl
- measurement of energy input
- wide range of materials for contamination free grinding
- Safety Slider for safe operation
- perfect stability on lab bench thanks to FFCS technology
- innovative counter weight and imbalance sensor for unsupervised operation
- comfortable parameter setting via display and ergonomic 1-button operation
- automatic grinding chamber ventilation
- 10 SOPs can be stored
- programmable starting time
- power failure backup ensures storage of remaining grinding time
- jars with O-type sealing for safe operation, pressure tight
Features
| Applications | pulverizing, mixing, homogenizing, colloidal milling, mechanical alloying |
| Field of application | agriculture, biology, Chemistry, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals |
| Feed material | soft, hard, brittle, fibrous - dry or wet |
| Size reduction principle | impact, friction |
| Material feed size* | < 10 mm |
| Final fineness* | < 1 µm, for colloidal grinding < 0.1 µm |
| Batch size / feed quantity* | max. 1 x 220 ml, max. 2 x 20 ml with stacked grinding jars |
| No. of grinding stations | 1 |
| Speed ratio | 1 : -2 |
| Sun wheel speed | 100 - 650 min-1 |
| Effective sun wheel diameter | 141 mm |
| G-force | 33.3 g |
| Type of grinding jars | "comfort", optional areation covers, safety closure devices |
| Material of grinding tools | hardened steel, stainless steel, tungsten carbide, agate, sintered aluminium oxide, silicon nitride, zirconium oxide |
| Grinding jar sizes | 12 ml / 25 ml / 50 ml / 80 ml / 125 ml / 250 ml / 500 ml |
| Setting of grinding time | digital, 00:00:01 to 99:59:59 |
| Interval operation | yes, with direction reversal |
| Interval time | 00:00:01 to 99:59:59 |
| Pause time | 00:00:01 to 99:59:59 |
| Storable SOPs | 10 |
| Measurement of input energy possible | yes |
| Interface | RS 232 / RS 485 |
| Drive | 3-phase asynchronous motor with frequency converter |
| Drive power | 750 W |
| Electrical supply data | different voltages |
| Power connection | 1-phase |
| Protection code | IP 30 |
| Power consumption | ~ 1250W (VA) |
| W x H x D closed | 630 x 468 x 415 mm |
| Net weight | ~ 86 kg |
| Documentation | Operation & Application Video |
| Standards | CE |
| Patent / Utility patent | Counter weight (DE 20307741), FFCS (DE 20310654), SafetySlider (DE 202008008473) |
