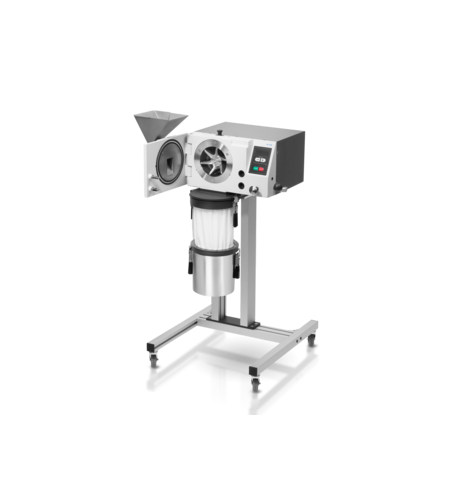

RETSCH Rotor Beater Mill SR 300
Perhatian!
Spesifikasi RETSCH Rotor Beater Mill SR 300
Product Advantages
- suitable for batchwise operation of larger quantities
- high final fineness
- adjustable speed for different applications
- easy cleaning thanks to exchangeable push-fit grinding insert, rotor and cassette
- grinding chamber, feed hopper and material inlet and outlet of stainless steel
- optional grinding inserts 180° for grinding of hard-brittle materials by additional impact
- optional distance rotor to reduce frictional heat
- removable hopper for easy cleaning
- electric engine brake
- defined final fineness due to bottom sieves with aperture sizes from 0.08 - 10 mm
- central locking device
- wide range of accessories including various collection and feeding systems, rotors and sieves
Features
| Applications | size reduction, deagglomeration |
| Field of application | agriculture, chemistry / plastics, construction materials, environment / recycling, food, geology / metallurgy, medicine / pharmaceuticals |
| Feed material | soft, medium-hard |
| Material feed size* | < 25 mm |
| Final fineness* | < 50 µm |
| Speed at 50 Hz (60 Hz) | 3,000 - 10,000 min-1 (in steps of 500 min-1) |
| Rotor peripheral speed | 22 ..72 m/s |
| Types of rotors | standard / distance |
| Material of grinding tools | rotor and sieves of stainless steel |
| Sieve sizes | trapezoid holes 0.08 / 0.12 / 0.20 / 0.25 / 0.35 / 0.50 / 0.75 / 1.00 / 1.25 / 1.50 / 2.00 mm round holes 3.00 / 4.00 / 10.00 mm |
| Hinged hopper | removeable hopper |
| Dust extraction unit | optional cyclone |
| Collector capacity | 5 l / optional: 30 l |
| Drive | 3-phase motor |
| Electrical supply data | 200 .. 240 V |
| Power connection | 1-phase |
| Engine brake | yes, electric |
| Protection code | IP 41 |
| Power consumption | 2.5 kW |
| W x H x D closed | 600 x 1200 x 700 mm (with base frame) |
| Net weight | ~ 60 kg (with base frame) |
| Standards | CE |
